HAOMEI Aluminum is a professional aluminum circle manufacturer, offering a wide range of models, sizes, and colors of aluminum circles. We also provide customized production services to meet the specific needs of different customers.

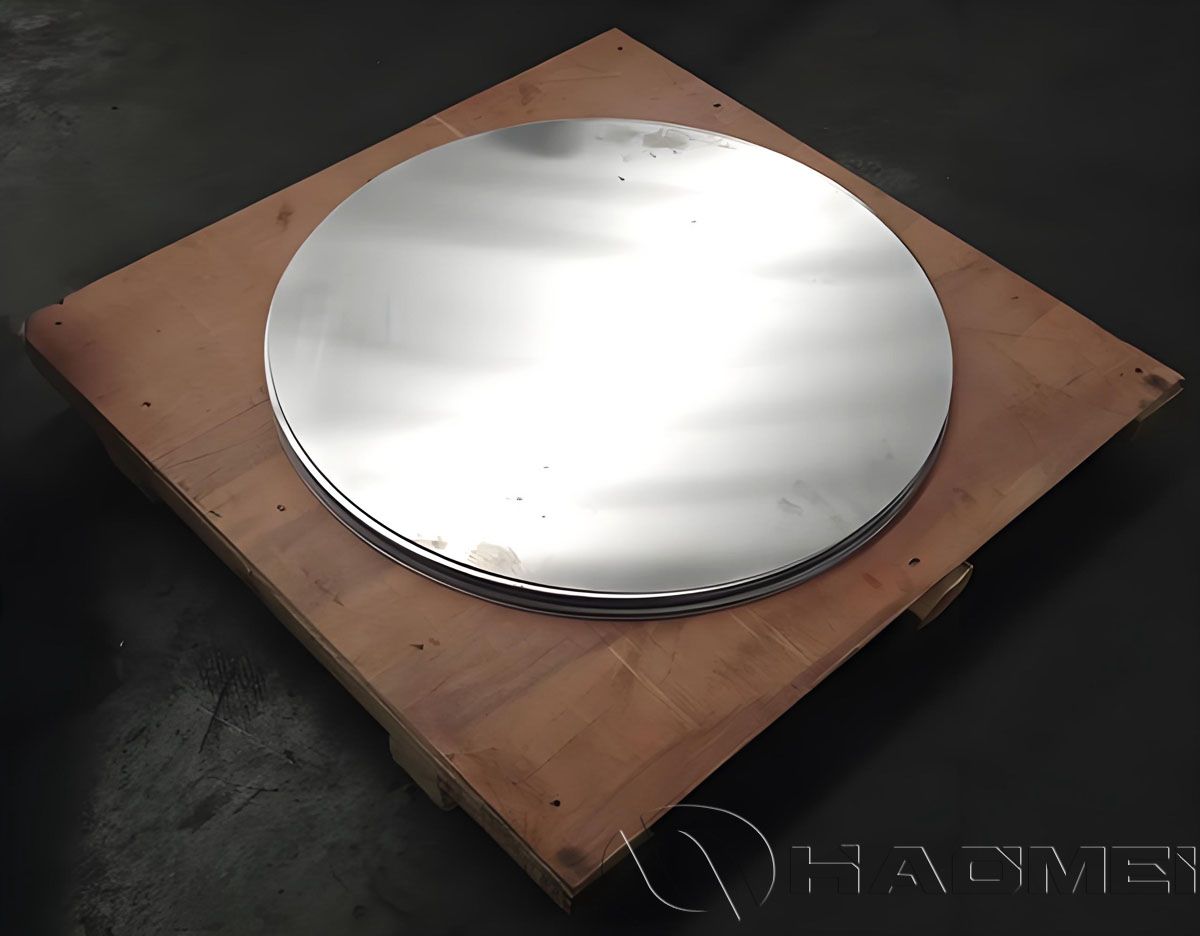

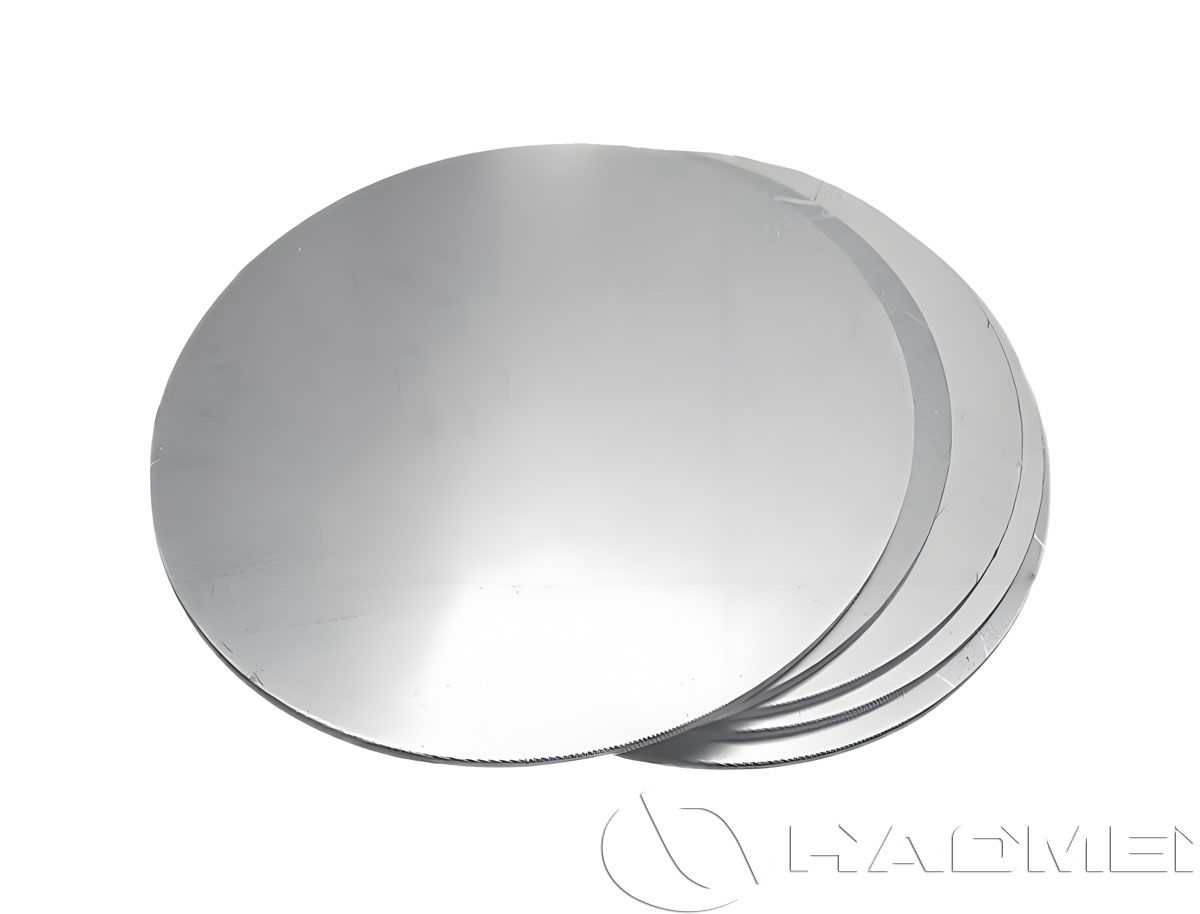

As a high-purity aluminum product, the 1060 aluminum circle contains more than 99.6% aluminum, featuring light weight, excellent conductivity, and outstanding corrosion resistance. It is widely used in cookware manufacturing, lamp reflectors, chemical equipment, and the electronics industry. HAOMEI Aluminum offers thickness options ranging from 0.5mm to 6.0mm, with diameters customizable according to client requirements.

Processing Advantages of 1060 Aluminum Circle

1060 aluminum circles can achieve different mechanical properties through various annealing tempers, including:

H24 temper: Semi-hard, good formability
H18 temper: Hard temper, high strength
O temper: Fully annealed, best formability

Performance Characteristics of 1060 Aluminum Disc

1. Excellent Plasticity and Workability
1060 aluminum circles have excellent ductility, making them ideal for deep drawing, stamping, and spinning. They are suitable for manufacturing complex-shaped aluminum products such as pot lids, lampshades, and reflectors.

2. Superior Corrosion Resistance
As a high-purity aluminum material, 1060 aluminum naturally forms an oxide film that effectively protects against corrosion from air and water. This makes it suitable for kitchenware and humid environments.

3. Good Electrical and Thermal Conductivity
With its high aluminum content, the 1060 aluminum circle offers excellent electrical conductivity and thermal performance, making it ideal for electrical appliances and heat sinks.

4. Easy Surface Treatment
1060 aluminum circles can be anodized, polished, brushed, or coated, enhancing their appearance and wear resistance, and meeting the aesthetic requirements of high-end products.

Technical Parameters of 1060 Pure Aluminum Circle

Aluminum Content	≥99.6%
Temper	O, H14, H18, H24, etc.
Thickness	0.5mm - 6.0mm
Diameter	100mm - 1200mm
Surface Treatment	Anodized, polished, brushed, coated, etc.
Density	2.71 g/cm³
Tensile Strength	110-136 MPa
Elongation	3-5%
Sample	Available
MOQ	1-3 tons

Comparison Among 1060 and Other 1000 Series Aluminum Circles

Although all 1000 series aluminum circles are characterized by high-purity aluminum, there are subtle but important differences among the various grades:

Model	Aluminum Content	Main Features	Typical Applications
1050	≥99.5%	High corrosion resistance, good ductility, medium strength	Daily items, lighting reflectors, chemical containers
1060	≥99.6%	Excellent elongation and tensile balance, good processability	Signage, building decoration, vehicle interiors
1070	≥99.7%	Higher purity, superior electrical and thermal conductivity	Capacitor foil, gaskets, wire shielding
1100	≥99.0%	Low strength, excellent forming ability	Cookware, heat sinks, bottle caps, printing plates

1060 Aluminum Circle vs. Other Common Aluminum Grades

To better understand the performance of 1060 aluminum circles, we compare them with 3003, 5052, and 6061 aluminum below:

1. Comparison of 1060 and 3003 Aluminum Discs

1060 aluminum discs are renowned for their high purity (aluminum content ≥99.6%) and excellent plasticity, making them ideal for deep drawing and stamping. While 3003 aluminum circles have a slightly lower aluminum content (approximately 96%), they incorporate about 1.2% manganese, thus enhancing their strength.

In comparison, 1060 aluminum discs offer superior plasticity and surface quality, making them suitable for cookware, non-stick pans, and decorative products requiring high-quality surfaces. 3003 aluminum discs, due to their higher strength, are better suited for applications requiring structural stress, such as marine aluminum plates or building panels.

Furthermore, 1060 aluminum discs exhibit excellent corrosion resistance, making them suitable for everyday kitchen environments. While 3003 aluminum also offers good corrosion resistance, it performs better in high-strength and mechanically loaded scenarios.

2. Comparison of 1060 and 5052 Aluminum Discs

Compared to 1060 aluminum discs, 5052 aluminum discs contain approximately 2.5% magnesium, which gives them superior strength and corrosion resistance, especially in seawater or humid environments.

While 5052 aluminum circles offer good machinability, they are not as easy to process as 1060 aluminum discs in deep drawing and complex forming. Therefore, 1060 aluminum discs are more advantageous for products requiring complex shapes and high surface quality.

5052 aluminum discs are suitable for applications such as marine engineering, fuel tanks, and automotive parts, where a balance between corrosion resistance and moderate strength is required. In summary, each has its strengths, and the choice should be based on the specific application environment.

3. Comparison of 1060 and 6061 Aluminum Discs

6061 aluminum circles are a structural aluminum material, primarily composed of aluminum, magnesium, and silicon, giving them high strength and fatigue resistance. However, their plasticity and deep-drawing properties are inferior to 1060 aluminum discs.

In contrast, 1060 aluminum discs emphasize high purity and excellent plasticity, making them ideal for stamping, deep drawing, and applications requiring high surface aesthetics, such as kitchen utensils and lamp reflectors. While 6061 aluminum is more advantageous in mechanical structural components, aerospace, and automotive parts, it is not suitable for surface finishing, deep drawing, and decorative products.

Therefore, the choice between 1060 and 6061 depends primarily on the product's functional priorities: whether high-strength structure is emphasized, or whether high-purity processing performance and surface aesthetics are prioritized.

How to Choose the Right 1060 Aluminum Circle

Verify Aluminum Purity
Ensure the aluminum content is ≥99.6% to guarantee excellent deep drawing and surface finishing performance.
Select the Right Thickness and Diameter
Choose dimensions based on your forming process and product requirements to reduce secondary machining waste.
Check Surface Quality
The surface should be flat, free from scratches, and evenly oxidized, which is crucial for anodizing or coating processes.
Evaluate Supplier Qualifications
Choose an experienced supplier with ISO-certified production and quality control systems to ensure product consistency and timely delivery.

HAOMEI Aluminum is an aluminum disc manufacturer with over 20 years of production experience. We produce aluminum discs in series 1, 3, 5, and 8, with a complete range of models, stable quality, and customized services. We export to many countries overseas, offer competitive prices, and welcome your orders.
