Custom Diameter Aluminum Circles

Title

As a professional manufacturer and supplier of aluminum circles, HAOMEI Aluminum produces 1000, 3000, 4000, 5000, and 8000 series aluminum circles, offering customization in sizes, surface treatments, and processing requirements. We are committed to providing customers with the best prices and high-quality service.

Material Selection and Alloy Grades

Aluminum circles, also known as aluminum discs or blanks, are flat round plates made from aluminum sheets or coils through precision processing such as cutting, stamping, or drawing.

HAOMEI aluminum circles have many advantages, including lightweight, excellent thermal conductivity, outstanding formability, superior corrosion resistance, and full recyclability. They are widely used in cookware manufacturing, lighting reflectors, traffic signs, and electronic components.

Aluminum Circle Alloy Grades

1000 Series Aluminum (Pure Aluminum)

The 1000 series contains over 99% aluminum. Common grades include 1050, 1060, 1070, and 1100, known for excellent formability, high reflectivity, and stable anodizing properties.

1000 series aluminum circles are widely used in standard cookware and lighting components. For example, 1050 aluminum circles are typically used for deep drawing cookware and induction coil bases. Thickness ranges from 0.7–7.0 mm, with diameters up to 100-650 mm.

3000 Series Aluminum (Al-Mn Alloy)

Represented by 3003, this series features excellent formability, high elongation, and superior surface quality.

3003 aluminum circles have fine grain structure, smooth surface, and high reflectivity, making them suitable for premium cookware and lighting. They can undergo various post-treatments such as anodizing, enameling, coating, and deep drawing.

5000 Series Aluminum (Al-Mg Alloy)

Represented by 5052, this series offers low density, light weight, high tensile strength, excellent elongation, and good fatigue resistance.

5000 series aluminum circles are widely used in high-end cookware and pressure vessels, including pressure cookers.

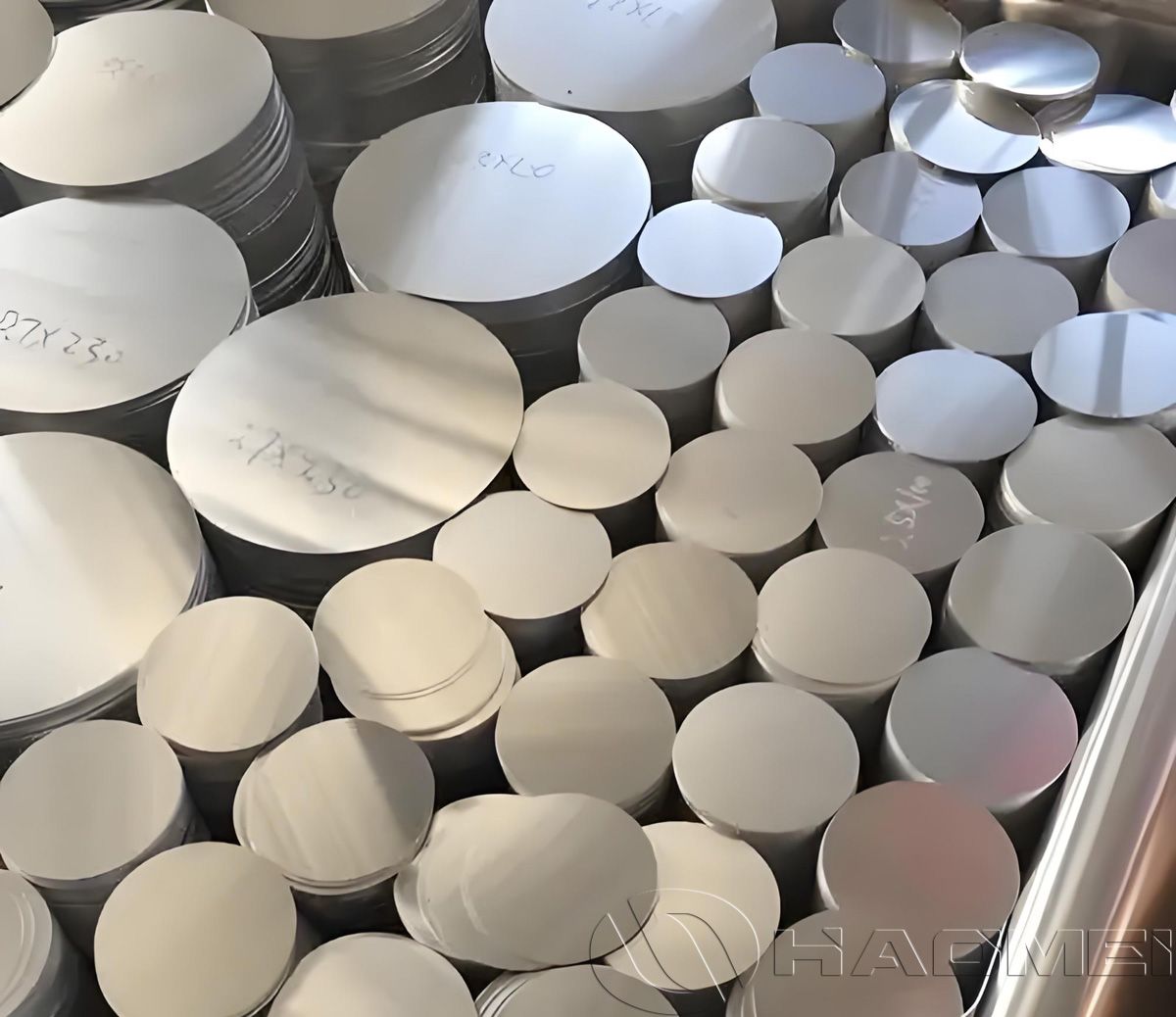

Aluminum circle disc.jpg

Specifications of Aluminum Blanks

Alloys	1050, 1060, 1070, 1100, 3002, 3003, 3004, 5052A, 5052, 5754, 5083, 8011
Temper	O, H12, H14, H16, H18
Thickness	0.5-6.0 mm
Diameter	100-1600 mm
Surface Treatments	polishing, bright finish, anodizing, brushing, coating, etc.
Production Process	DC / CC
Applications	cookware (pots, frying pans, pizza pans, pie pans, cake trays, lids, kettles, basins, woks), reflectors, and more.
Samples	available
MOQ	1-3 tons

Custom Diameter Options

Different applications require different diameters and thicknesses. Below are common custom size ranges, which can be adjusted flexibly according to customer requirements.

Small Sizes	10 mm, 12 mm, 18 mm, 19 mm, 20 mm, 22 mm, 25 mm, 30 mm (3 cm), 32 mm, 35 mm (3.5 cm), 36 mm, 38 mm (3.8 cm), 40 mm (4 cm), 44 mm, 70 mm, 75 mm, 80 mm (8 cm), 85 mm, 90 mm, 100 mm, 115 mm, 180 mm, 230 mm (1 inch, 1.25 inch, 1.5 inch, 3.5 inch, 4 inch)
Large Sizes	200 mm (20 cm), 400 mm, 600 mm, 1200 mm, 2500 mm (12 inch, 14 inch, 26 inch, 72 inch)

Optional Features:

Precision tolerance control up to ±0.2 mm
Edge treatments: chamfering, deburring, trimming
Large diameter discs can be segmentally packed to ensure safe transportation

Mechanical properties of aluminum blanks

Temper	Thickness (mm)	Tensile Strength (MPa)	Elongation (%)	Standard
O	0.4-6.0	60-100	≥20	GB/T3190-1996
H12	0.5-6.0	70-120	≥4
H14	0.5-6.0	85-120	≥2

Aluminum blanks specification tolerance

Blanked and sheared round products
Thickness (mm)	Diameter Range (D) (mm)
0.5-6.0	D≤455	455< D ≤ 1000	1000< D ≤ 1200
	+/- 0.079	+/- 0.099	+/- 0.015
Maximum sizes may vary depending on specific requirements.

Applications of Custom Aluminum Circles

Cookware Industry:
Thanks to excellent heat conductivity and deep drawing properties, aluminum circles are widely used in rice cooker liners, frying pans, non-stick pans, and more. Cookware circles must support various surface finishes such as sanding, sandblasting, and anodizing.
Lighting Industry:
With high reflectivity and excellent surface smoothness, aluminum circles are ideal for downlight reflectors, layered lamps, street light covers, etc. These applications require defect-free surfaces (no scratches, oil stains, oxidation marks, or black spots).
Electronics:
Used to produce mobile phone frames and various electronic components.
Transportation:
Aluminum circles are used in traffic signs, where their high reflectivity and weather resistance ensure visibility and durability under different environmental conditions.

As an experienced aluminum circle disc manufacturer, HAOMEI Aluminum can customize aluminum discs in various alloys, thicknesses, and surface treatments to meet customer requirements. These discs are widely used in kitchenware, lighting, architectural decoration, and other fields. Our products comply with national standards and are subject to third-party testing. We undergo rigorous quality inspections before shipment to ensure batch consistency. We have ample inventory in standard sizes, offer short lead times, and offer international export services with guaranteed after-sales service.
