As an aluminum circle and disc manufacturer, we produce 36 inch aluminum discs for industrial forming, fabrication, heat transfer, signage, lighting, and equipment components. A 36 inch aluminum disc has a nominal diameter of 914.4 mm, making it a large-size aluminum blank that requires stable rolling quality, accurate blanking, controlled flatness, and careful packaging. For industrial users, the disc is not only a round piece of aluminum sheet; it is a semi-finished component that must perform consistently in stamping, spinning, deep drawing, welding, anodizing, coating, or assembly.

Our production is based on aluminum coil and sheet processed in-house into round blanks according to customer drawings. We supply standard and custom aluminum discs in 1000 series, 3000 series, and 5000 series alloys, including 1050, 1060, 1070, 1100, 3003, 3004, 3105, and 5052. For a 36 inch aluminum disc for industrial use, alloy selection is usually determined by forming depth, mechanical strength, corrosion resistance, thermal conductivity, and surface finishing requirements.

What Is a 36 Inch Aluminum Disc?

A 36 inch aluminum disc is a circular aluminum blank cut from rolled aluminum sheet or coil. The nominal diameter is 36 inches, equal to 914.4 mm. This size is commonly used where a large round panel, cover, base plate, reflector, cookware blank, sign blank, equipment cover, tank end, or lighting component is required.

Compared with small aluminum circles for household cookware, a 36 inch industrial aluminum disc places higher demands on coil width, internal stress control, disc flatness, and edge quality. If the sheet is not properly leveled or annealed, the blank may warp during cutting or deform during spinning. If the edge has heavy burrs, cracks, or uneven shearing marks, it may affect downstream forming tools and final product appearance.

For this reason, our factory controls each stage from raw material selection to final inspection. We confirm chemical composition, rolling condition, thickness tolerance, surface cleanliness, and mechanical properties before production. The finished aluminum disc can be supplied in O, H12, H14, H16, H18, H22, H24, or other tempers according to the alloy and application.

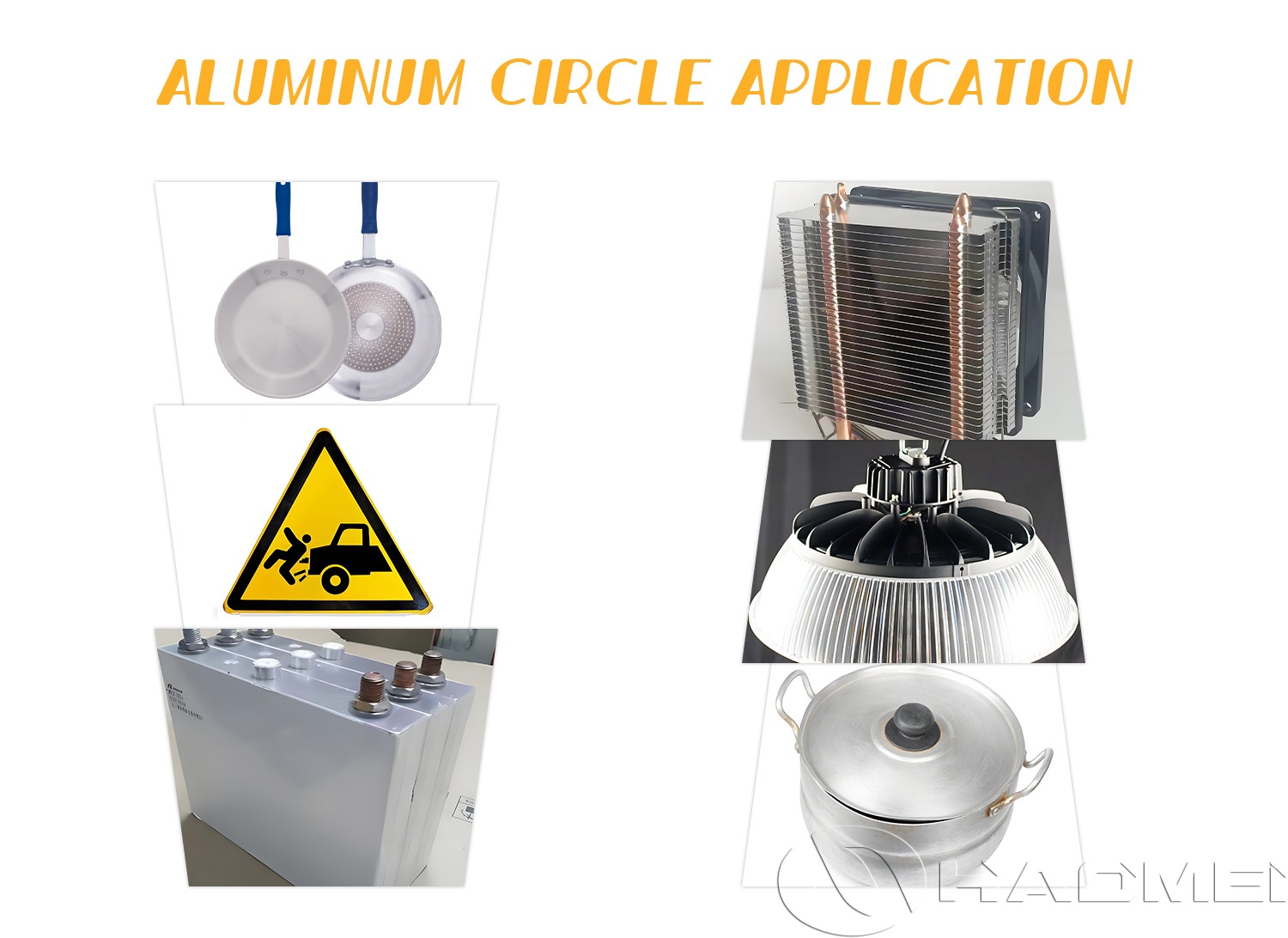

Main Industrial Applications

The 36 inch aluminum disc is used in many industrial sectors because aluminum combines low density, corrosion resistance, good thermal conductivity, and excellent formability. Typical applications include:

• Industrial lighting reflectors and lamp housings

• Traffic signs and road sign blanks

• Spun aluminum covers, lids, and equipment casings

• Heat transfer plates and thermal management components

• Cookware, large pans, pressure cooker parts, and kitchen equipment

• Fan covers, machine guards, and decorative industrial panels

• Aluminum tank heads and vessel end plates for non-pressure or low-load structures

• Electrical and electronic housings requiring lightweight round components

• Anodized or coated round panels for architectural and equipment use

The correct alloy should be selected before production. For example, 1060 and 1100 aluminum discs are preferred when high formability and thermal conductivity are important. 3003 aluminum disc is often selected when moderate strength and better forming performance are required. 5052 aluminum circle is suitable for applications requiring higher strength and improved corrosion resistance, especially in humid or marine-related environments.

Technical Parameters of 36 Inch Aluminum Disc

The following table shows common manufacturing parameters. Final specifications can be adjusted according to customer drawings, processing method, and application standards.

Alloy Selection for Industrial Aluminum Discs

1000 Series: 1050, 1060, 1070, and 1100

1000 series aluminum discs are widely used where forming performance, corrosion resistance, and thermal conductivity are the main requirements. These alloys have high aluminum content and relatively low strength, but they are easy to deep draw, spin, polish, and anodize. A 1100 aluminum disc or 1060 aluminum circle is often selected for reflectors, cookware blanks, electronic parts, and general industrial panels.

For customers who process the disc by deep drawing or spinning, O temper is commonly recommended. H14 or H24 can be used when the disc needs higher hardness and only moderate forming is required.

3000 Series: 3003, 3004, and 3105

3000 series aluminum discs contain manganese as the main alloying element. They provide better strength than pure aluminum while maintaining good formability and corrosion resistance. The 3003 aluminum disc is one of the most commonly used options for industrial round blanks, especially for spun parts, lamp housings, tanks, covers, and cookware components.

3004 and 3105 aluminum discs are used where slightly different mechanical properties or coating performance are required. These alloys are suitable for customers who need a balance between formability and improved rigidity.

5000 Series: 5052

5052 aluminum circle provides higher strength and better corrosion resistance than 1000 and 3000 series materials. It is often used for marine-related equipment, outdoor components, machinery covers, and products exposed to more demanding service environments. However, 5052 has different forming characteristics, so bending radius, spinning process, and annealing condition should be confirmed before mass production.

Manufacturing Process in Our Factory

Our 36 inch aluminum disc production begins with aluminum coil inspection. The coil is checked for alloy grade, temper, thickness, width, surface defects, and certificate consistency. After approval, the material enters leveling, feeding, blanking, edge treatment, cleaning, inspection, and packaging.

For large aluminum discs, flatness control is especially important. We use leveling equipment to reduce coil set and internal stress before blanking. The blanking die or cutting system is selected according to thickness and order volume. For high-volume production, stamping is efficient and provides stable diameter accuracy. For special thicknesses or trial orders, controlled cutting may be used.

After blanking, edge quality is inspected. Burrs, sharp edges, and uneven cuts can cause problems in spinning or coating, so deburring is arranged when required. If the application needs soft temper for deep drawing, annealing is carried out under controlled furnace conditions. The annealing process helps improve elongation and reduces cracking risk during forming.

For surface-sensitive products, we can supply discs with protective film, interleaving paper, or special packaging to reduce friction marks during transportation. For anodizing or coating applications, customers should advise their surface standard in advance so that we can select suitable base material and handling procedures.

Quality Control and Inspection

Industrial buyers usually require stable production rather than only one qualified sample. Our inspection system is designed to maintain batch consistency. Before production, we verify the raw material certificate and perform sampling checks. During production, operators monitor disc diameter, thickness, surface condition, edge condition, and flatness. Final inspection is carried out before packaging.

Key inspection items include:

• Alloy and temper confirmation

• Thickness measurement at multiple points

• Diameter and roundness inspection

• Surface checks for scratches, stains, oxidation, rolling marks, and dents

• Edge burr and crack inspection

• Flatness and warpage observation

• Mechanical property verification when required

• Packaging and label verification before shipment

For export orders, we can provide a mill test certificate, packing list, commercial documents, and traceable batch information. If the customer has a specific standard such as ASTM, EN, or JIS requirement, it should be confirmed during quotation and contract review.

Surface Requirements for Downstream Processing

The surface quality of a 36 inch aluminum disc should match the final use. A mill finish aluminum disc is suitable for many internal industrial components. For visible parts such as lamp reflectors, signage, decorative panels, or anodized products, stricter surface control is required.

Common surface options include mill finish, bright finish, brushed finish, anodizing quality, and coated quality. If the customer needs mirror polishing, non-stick coating, powder coating, or anodizing after forming, the base surface must be free from deep scratches, oil stains, heavy oxidation, and embedded particles. Protective film can be applied for selected specifications, but compatibility with subsequent forming and heat treatment should be reviewed.

Packaging for 36 Inch Aluminum Discs

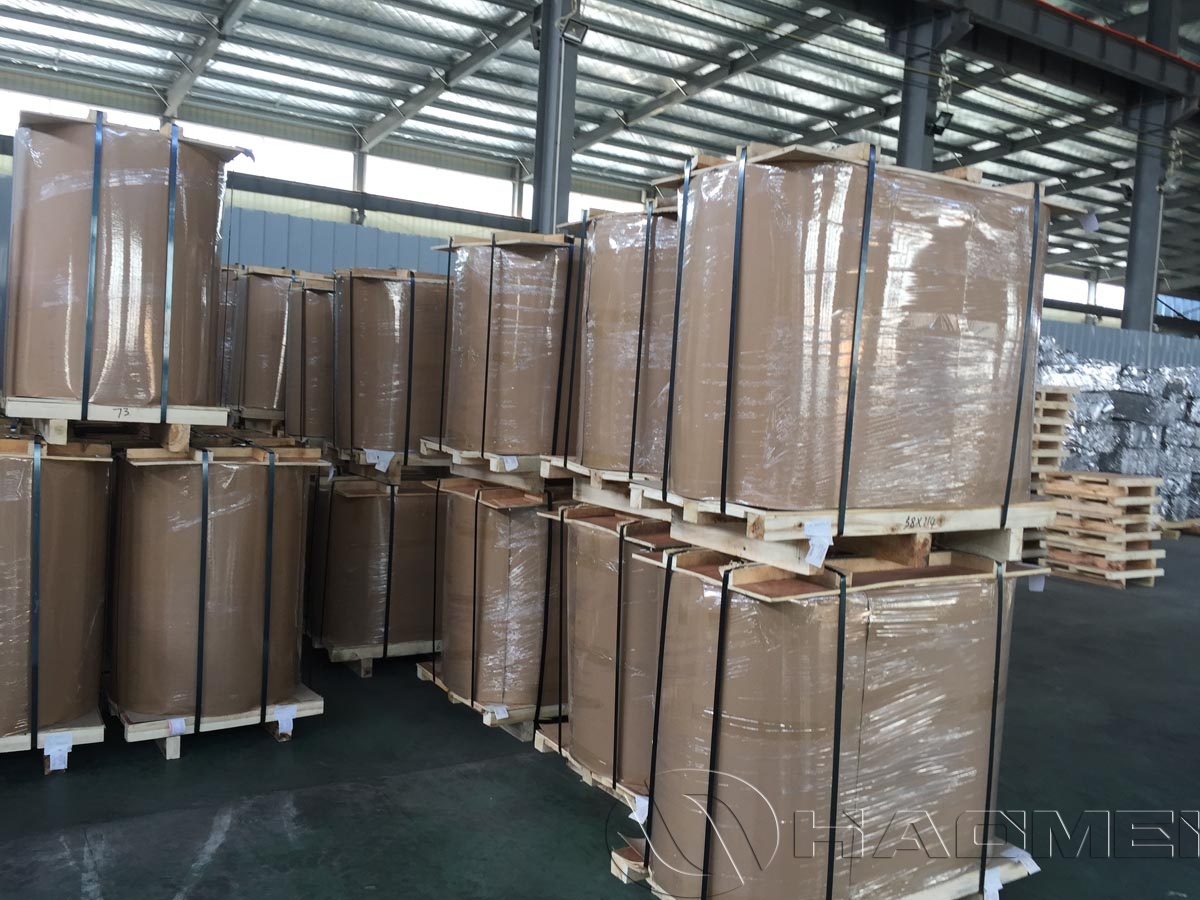

Because a 36 inch aluminum disc is large and relatively easy to scratch or bend if handled incorrectly, export packaging must be designed for stability. We generally stack the discs evenly, use moisture-resistant wrapping, protect the edges, and secure the stack on a wooden pallet or inside a wooden case. The packaging method is selected according to thickness, quantity, transport distance, and unloading conditions.

For thin-gauge discs, vertical impact and edge pressure should be avoided. For thicker aluminum discs, the main concern is preventing surface abrasion and ensuring the pallet can bear the weight safely. Labels are attached to show alloy, temper, size, batch number, quantity, and customer order information.

Ordering Information for Custom Aluminum Discs

To produce the correct 36 inch aluminum disc, we recommend that customers provide the following details:

1. Alloy grade, such as 1060, 1100, 3003, or 5052

2. Temper, such as O, H14, H24, or H32

3. Diameter and tolerance requirement

4. Thickness and thickness tolerance

5. Surface requirement and whether protective film is needed

6. Edge requirement, such as normal sheared edge or deburred edge

7. Application and forming method, such as spinning, stamping, deep drawing, or coating

8. Required standard, inspection document, and packaging method

9. Order quantity and delivery schedule

If the customer is not certain about alloy selection, our technical team can make a recommendation based on the forming depth, strength requirement, surface treatment, and service environment. For new projects, sample production or trial order discussion can help confirm the most suitable specification before volume purchasing.

Conclusion

A 36 inch aluminum disc for industrial use must meet more than basic dimensional requirements. It needs suitable alloy selection, reliable temper control, stable thickness, good flatness, clean surface, controlled edge quality, and export-safe packaging. As a factory specializing in aluminum circles and discs, we manufacture large aluminum discs according to customer drawings and application requirements, with options in 1000, 3000, and 5000 series alloys.

Whether the final product is an industrial lighting component, equipment cover, traffic sign blank, heat transfer part, cookware blank, or formed aluminum casing, consistent material quality is the foundation of efficient downstream processing. By controlling the manufacturing process from coil inspection to final packaging, we supply custom aluminum discs that support stable fabrication and long-term industrial use.
