Traffic signs convey information through symbols, colors, and text. They serve essential roles in guidance, warnings, and public communication. Common materials include aluminum, steel, and plastics. Steel is heavier and more costly, while plastic has a shorter service life. As a result, aluminum has become the preferred choice due to its light weight, durability, and superior weather resistance.

To ensure long-term outdoor use, traffic signs must offer high mechanical strength, excellent corrosion resistance, and long-lasting surface stability. Among aluminum alloys, 5052 aluminum discs fully meet these requirements, making them widely used for traffic signs, direction boards, safety warnings, and more.

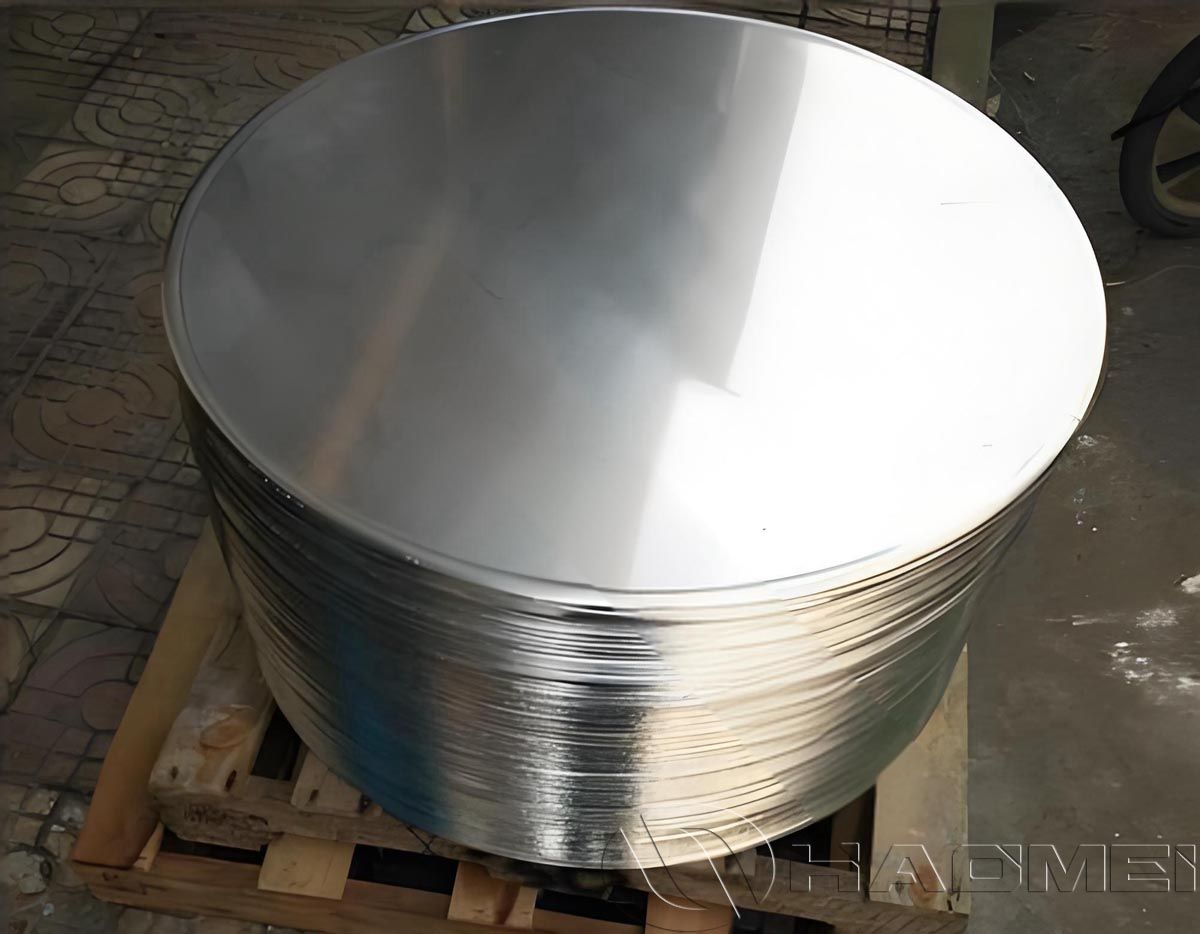

Overview of 5052 Aluminum Circles

5052 aluminum belongs to the Al-Mg series alloy, with a magnesium content of 2.2-2.8%. It offers medium-to-high strength, excellent formability, and outstanding corrosion resistance. It provides higher strength than 3003 aluminum while being easier to process than 5083, making it an ideal balance for traffic sign production.

Why Choose 5052 Aluminum Discs for Traffic Signs?

1. Corrosion Resistance

The magnesium in 5052 alloy gives it excellent resistance to the atmosphere, especially marine atmospheres and de-icing salt environments. In corrosive environments such as coastal areas, roads where de-icing agents are applied in winter, and industrial areas, 5052 aluminum discs effectively resist salt spray and chemical corrosion, preventing the formation of white oxides or pitting corrosion, ensuring the long-term integrity of the sign base, and fundamentally eliminating the problem of sign failure caused by substrate corrosion.

2. Fatigue Resistance

The strength of 5052 aluminum discs, especially tensile strength and yield strength, is higher than that of 3003 aluminum discs. This means that signs made from 5052 aluminum discs can better resist strong winds, minor hail impacts, and collisions that may occur during transportation and installation, effectively preventing dents or warping and maintaining a flat and new appearance for a long time.

3. Deep Drawing and Formability

5052 aluminum discs possess excellent ductility and deep drawing properties, allowing them to be stamped into various signs with raised or recessed contours, such as speed limit signs and prohibition signs, in a single process without cracking or excessive thinning in certain areas. This results in a stronger overall structure and a more three-dimensional and professional appearance for the signs.

4. Weldability

5052 aluminum discs can be easily welded to aluminum supports or connectors using conventional methods (such as TIG and MIG). The welds are strong, and the post-weld performance is stable, ensuring the structural integrity of the entire sign support system.

5. Surface Treatment

The surface is ideal for anodizing. Anodizing not only forms a very hard protective film, further enhancing corrosion and wear resistance, but also provides a clean, uniform substrate with excellent adhesion for subsequent reflective film application. This ensures a strong bond between the reflective film and the base plate, preventing bubbling and detachment.

6. Lightweight Design

Compared to traditional steel signs, 5052 aluminum discs have only one-third the density of steel, resulting in a significant weight reduction. This effectively reduces transportation costs, simplifies installation, reduces the load on signposts and support structures, and provides greater safety and stability.

7. Environmentally Friendly

Aluminum offers extremely high recyclability with minimal performance loss.
It is a sustainable, resource-efficient option for modern traffic systems.

8. Excellent Cost Performance

While 5052 is more expensive than 3003, it is more economical than 5083 or 7000-series alloys.
Due to its durability and low maintenance requirements, its total life-cycle cost is highly competitive.

Technical Specifications for 5052 Aluminum Discs for Traffic Signs

Mechanical Properties

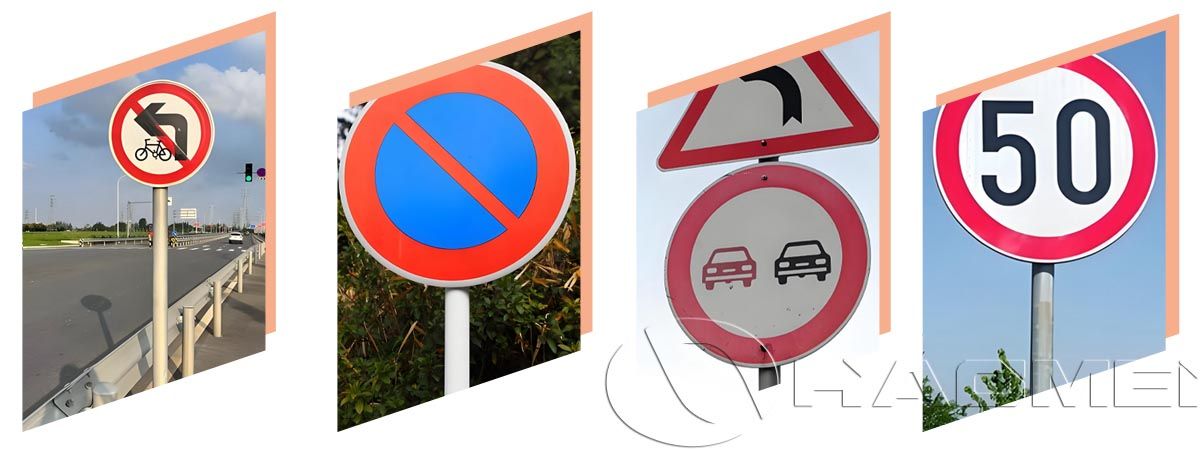

Typical Applications of 5052 Aluminum Discs in Traffic Signs

• Speed limit signs

• Prohibition signs

• Mandatory instruction signs

• STOP signs

• Highway reflective plates

• Urban road direction boards

• Public information or advertising panels

Production Process of 5052 Aluminum Discs

1. Alloy melting

2. Casting

3. Hot rolling

4. Cold rolling

5. Annealing

6. Blanking / Punching into discs

7. Surface cleaning & film application

8. Final inspection & packaging

9. Delivery

5052 vs. 3003 Aluminum for Traffic Signs

Although 3003 aluminum discs are also used, 5052 provides significant advantages:

1. Strength & Wind Resistance

5052 has much higher tensile and yield strength.
In high-wind or exposed locations, 3003 signage is more prone to bending or permanent deformation, while 5052 remains stable.

2. Corrosion Resistance

5052 is among the best corrosion-resistant aluminum alloys.
In coastal or polluted urban areas, 5052 maintains its integrity far better than 3003.

3. Life-cycle Cost

3003 has a lower initial price, making it suitable for temporary or low-demand signage.
However, 5052 offers longer service life and reduced maintenance, providing better cost efficiency in long-term applications.
