As a dedicated aluminum circle manufacturer, we produce large diameter aluminum discs for industrial customers that require stable dimensions, reliable forming performance, and consistent surface quality. Large diameter aluminum discs are widely used in cookware, traffic signs, lighting components, pressure vessel parts, and spun or deep-drawn industrial products. Compared with standard sizes, custom processing of large aluminum discs places higher demands on raw material control, blanking accuracy, flatness management, and packaging protection.

In our factory, custom aluminum discs are produced according to drawing, alloy specification, temper requirement, and end-use forming method. Whether the application involves deep drawing, spinning, stamping, anodizing, or reflective finishing, the production route must be matched to the performance target. This article explains how we manufacture large diameter aluminum discs, which alloys we recommend, what parameters can be customized, and which quality points matter most in practical procurement.

What We Mean by Large Diameter Aluminum Discs

In production terms, large diameter aluminum discs generally refer to aluminum circles above the common cookware blank range. In export orders, these products are often requested for diameters from 500 mm upward, and in some projects significantly larger sizes are needed for spun parts, signage, lamp housings, or formed industrial covers.

The larger the disc diameter, the more important the following factors become:

• Coil or sheet flatness before blanking

• Control of edge quality after cutting

• Residual stress management

• Thickness consistency across the full radius

• Surface cleanliness for subsequent forming or finishing

• Packaging stability during transport

For this reason, large aluminum circle processing is not simply an extension of standard aluminum disc production. It requires process matching from incoming material to final packing.

Common Alloys for Custom Large Aluminum Discs

We manufacture custom aluminum discs in both 1000 series and 3000 series alloys. Alloy selection depends on whether the customer prioritizes formability, corrosion resistance, surface appearance, or moderate strength.

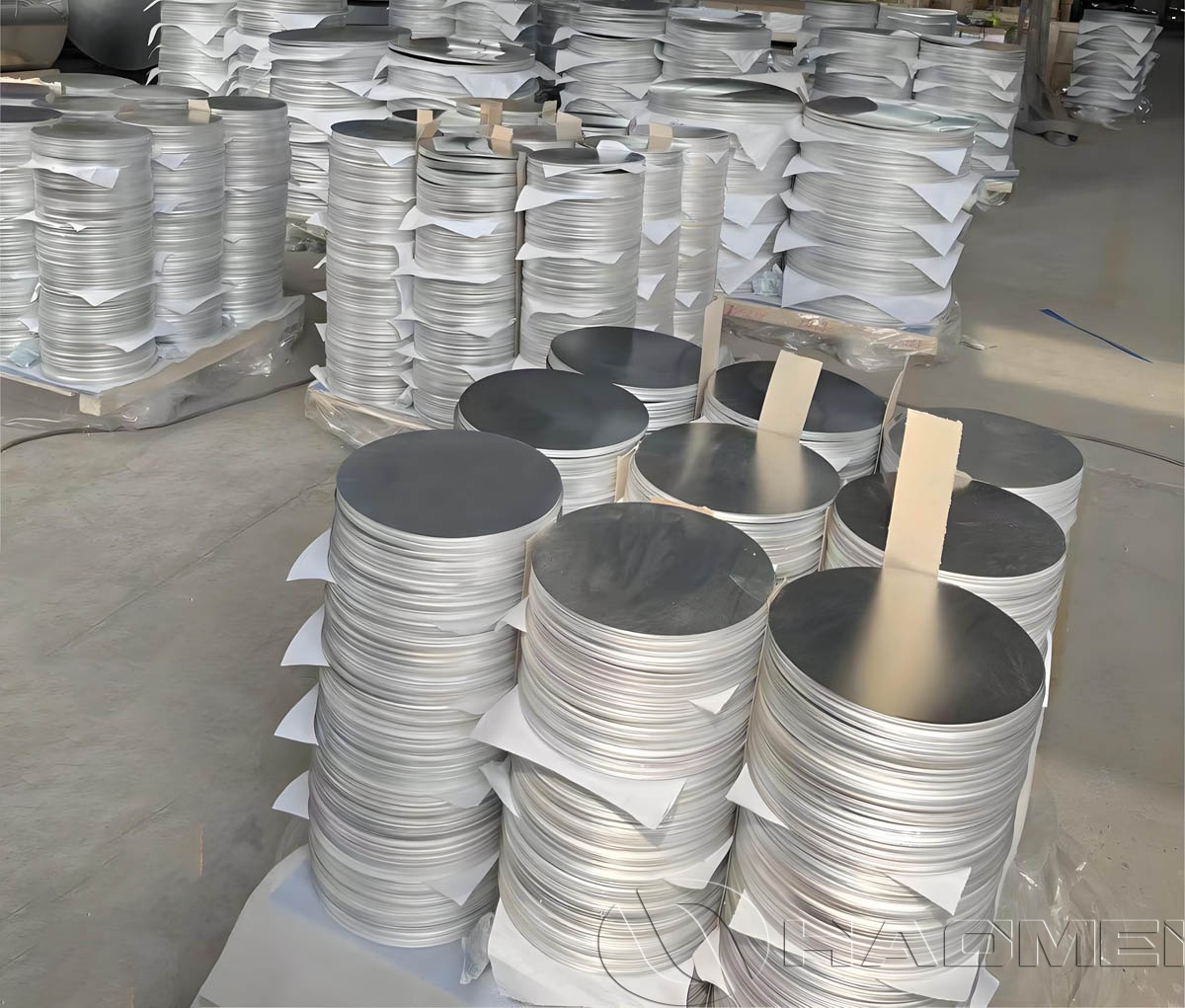

1000 Series Aluminum Discs

1000 series alloys such as 1050, 1060, 1070, and 1100 are commonly selected when high elongation, good thermal conductivity, and clean surface are required. These are widely used for cookware, lamp covers, and spun parts.

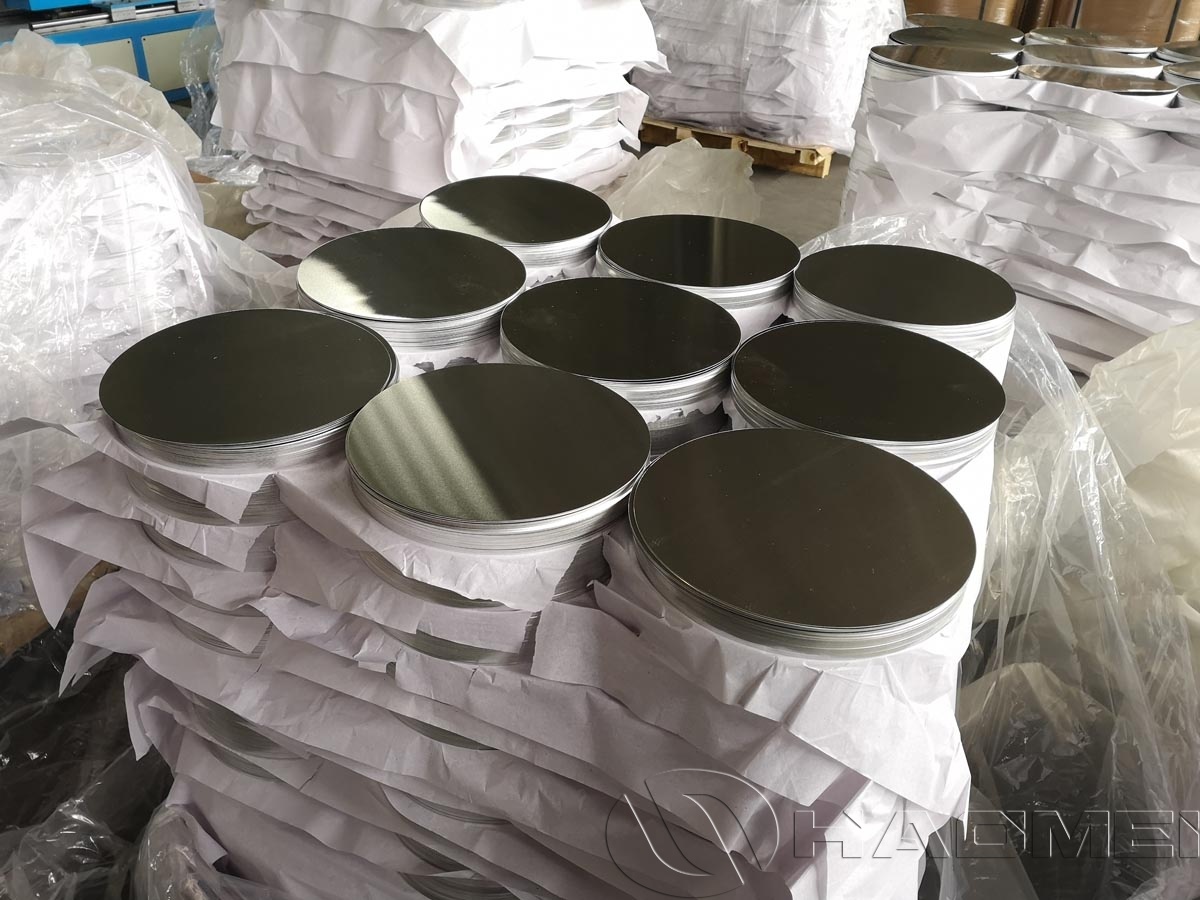

3000 Series Aluminum Discs

3003 and 3105 aluminum discs are suitable for applications requiring better strength and corrosion resistance while maintaining good workability. They are commonly used for road signs, lighting components, decorative parts, and some formed industrial parts.

Custom Processing Capabilities

As a manufacturer, we process large diameter aluminum discs based on customer drawings or technical requirements. Typical customization items include diameter, thickness, alloy, temper, surface finish, edge condition, and packing method.

Main Custom Options

The actual production range should be confirmed against the required end use, because ultra-large diameters and thin gauges require tighter control during blanking and handling.

How We Manufacture Large Diameter Aluminum Discs

Our factory uses a controlled process route to ensure that custom processing of large diameter aluminum discs meets both dimensional and forming requirements.

1. Raw Material Selection

Production begins with aluminum coil or sheet of qualified chemical composition and mechanical properties. For deep drawing aluminum discs, we prioritize material with stable grain structure, low earing tendency, and consistent elongation. For traffic sign and lighting uses, we focus on surface uniformity and flatness.

2. Slitting and Preparation

Before blanking, the input material is slit or leveled to match the required disc diameter and process route. For large diameter products, proper leveling is important to reduce internal stress and improve final flatness.

3. Blanking or Cutting

We use suitable blanking methods according to size, thickness, and edge quality requirement. The purpose is to maintain accurate diameter, roundness, and a clean edge without excessive burr or deformation.

4. Surface and Shape Control

After blanking, each batch is checked for scratches, oil contamination, waviness, and edge defects. For large aluminum discs intended for visible parts, surface consistency is especially important.

5. Mechanical Property Verification

When the discs are intended for spinning or deep drawing, we verify relevant performance indicators such as thickness deviation, hardness range, and elongation level based on customer specification or internal control standards.

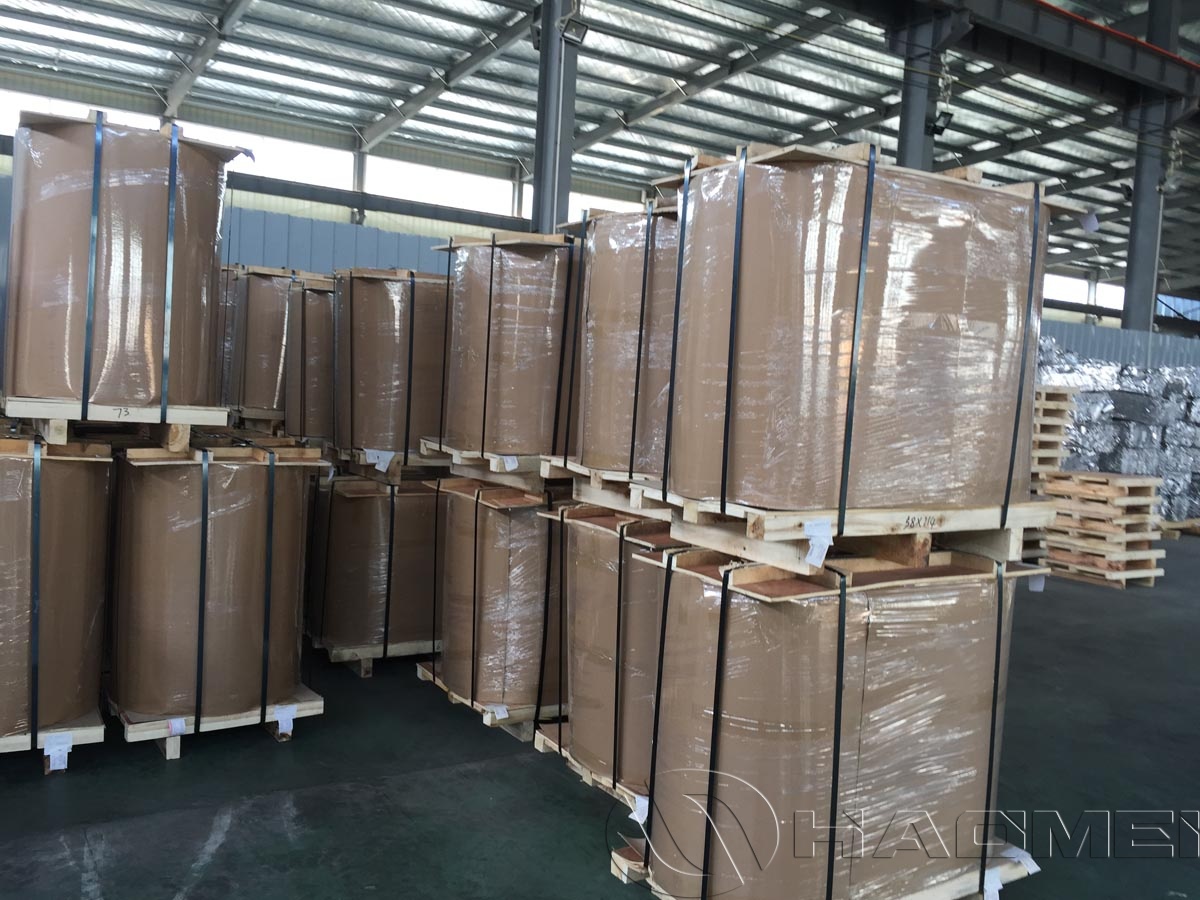

6. Packaging for Export

Large diameter aluminum discs require stable packaging to prevent impact damage, edge distortion, and moisture exposure during loading and sea transport.

Key Quality Points in Large Diameter Disc Production

For B2B buyers, price alone is not enough to evaluate a large diameter aluminum disc supplier. The product must perform consistently in the customer's downstream process. In our manufacturing practice, the following quality points are critical.

Diameter Accuracy and Roundness

A large disc with poor roundness can cause instability during spinning, stamping, or automatic feeding. We control tooling condition and process parameters to keep dimensional deviation within the agreed range.

Thickness Consistency

Thickness variation directly affects forming behavior, rigidity, and final part weight. This is especially important for cookware bodies, lamp reflectors, and industrial spun components.

Edge Quality

Burrs or micro-cracks at the edge can develop into defects during subsequent forming. Smooth edge quality is one of the basic requirements for custom aluminum discs used in deep drawing and spinning.

Surface Finish

For anodized, polished, or decorative products, even minor roll marks, scratches, or oil stains may lead to rejection. We therefore separate general industrial grade from higher surface requirement orders during production planning.

Formability

Large diameter aluminum discs used in cookware or spun housings must have stable forming behavior. Material selection and temper control are therefore coordinated with the customer's process, such as deep drawing ratio, spinning speed, or intermediate annealing plan.

Typical Applications of Large Diameter Aluminum Discs

Custom large aluminum discs are used in many industrial sectors. The exact alloy and temper depend on the final forming route and service environment.

Cookware and Kitchenware

For pots, pans, pressure cooker parts, and large kitchenware bodies, 1050, 1060, and 3003 aluminum discs are common. O temper is often selected for deep drawing aluminum disc applications requiring good elongation.

Traffic Signs and Road Signs

Large diameter or custom-shaped discs and blanks are used for sign faces and formed reflective substrates. In these cases, flatness, surface uniformity, and corrosion resistance are important.

Lighting and Electrical Components

Aluminum circles are used for lamp housings, reflectors, covers, and electrical enclosures. Depending on design, customers may require spinning grade material or a surface suitable for polishing and anodizing.

Industrial Spun and Stamped Parts

Large aluminum circles are also used in fan covers, equipment end caps, filter housings, and protective covers. These applications often require a balance of dimensional accuracy and stable mechanical performance.

How We Match Material to Processing Method

As a factory, we do not recommend alloy and temper based only on nominal specification. We match the material to the customer's manufacturing method.

This engineering-based matching helps reduce forming loss and improves consistency in serial production.

Information Buyers Should Provide for Custom Orders

To shorten sampling time and avoid specification mismatch, we recommend that customers provide the following details when inquiring about large diameter aluminum disc custom processing:

• Required diameter and thickness

• Alloy and temper

• Final application

• Processing method, such as deep drawing, spinning, or stamping

• Surface requirement

• Tolerance requirement

• Quantity per size

• Packaging method and export destination

If the customer has a drawing or an existing sample, production confirmation becomes more direct and efficient.

Our Manufacturing Approach

As an aluminum circle manufacturer, we focus on process stability rather than generalized product claims. For large diameter aluminum discs, the core of reliable supply is not only the ability to cut large sizes, but also the ability to keep alloy condition, flatness, edge quality, and packaging under control across repeated batches.

In practical export supply, this is what determines whether the discs can enter the customer's line smoothly, whether forming loss remains acceptable, and whether the final parts meet appearance requirements.

Conclusion

Custom processing of large diameter aluminum discs requires coordinated control of material, equipment, tooling, inspection, and packaging. From cookware and lighting to road signs and industrial spun parts, different applications demand different combinations of alloy, temper, and surface condition. As a factory manufacturer, we produce custom aluminum discs according to actual downstream requirements, with attention to dimensional consistency, forming performance, and export packaging reliability.

For buyers sourcing large diameter aluminum disc products, clear technical communication at the inquiry stage is the most effective way to achieve stable production and efficient delivery.
