As a manufacturer of aluminum circle discs, we supply 3003 aluminum circles engineered for the forming, finishing, and optical requirements of LED reflector production. These discs are used as blanks for recessed downlights, industrial high-bay fixtures, track lights, street lighting components, decorative luminaires, and reflector housings.

LED reflector components require more than a round aluminum blank. The material must maintain reliable thickness, flatness, edge condition, and surface consistency through spinning, stamping, deep drawing, polishing, anodizing, or coating. Our 3003 alloy aluminum circles are produced with controlled chemical composition and process parameters to support stable downstream fabrication.

Why 3003 Aluminum Is Used for LED Reflectors

Alloy 3003 is an aluminum-manganese alloy with good corrosion resistance, moderate strength, and practical workability. Compared with commercially pure aluminum grades, 3003 offers improved strength while retaining the formability needed for many reflector shapes. This balance makes it a suitable option for LED reflector aluminum circles that need to undergo pressing, drawing, spinning, or edge flanging.

For lighting manufacturers, the benefits of 3003 aluminum discs for LED reflectors include:

• Consistent mechanical properties for repeatable forming operations.

• Good resistance to atmospheric corrosion in indoor and outdoor lighting assemblies.

• Stable performance in spun or stamped reflector profiles.

• Compatibility with anodizing, painting, powder coating, and selected reflective finishing processes.

• Clean, burr-controlled edges that reduce splitting and improve production safety.

• Reliable thermal conductivity for reflector structures that also contribute to heat dissipation.

The final optical performance of a reflector depends on the selected surface treatment, reflector geometry, coating system, and LED configuration. We therefore work with customers to match the aluminum circle temper, surface condition, and dimensional tolerance to the intended manufacturing route.

Technical Parameters of 3003 Aluminum Circles

Our factory can manufacture 3003 aluminum circles in customized diameters, thicknesses, tempers, and surface conditions. The following values represent common supply ranges for LED reflector applications. Final specifications are confirmed according to the purchaser's drawings and process requirements.

Chemical composition and mechanical properties are supplied in accordance with the relevant customer requirement, applicable alloy standard, and ordered temper. For critical reflector projects, we can provide material certificates, inspection records, and sample verification before volume production.

Temper Selection for Reflector Forming

Selecting the right temper is essential when purchasing aluminum discs for LED reflectors. A reflector may appear simple, but its manufacturing process can impose significant stress on the disc, especially around the center hole, rim, neck, or drawn side wall.

3003 O Temper Aluminum Discs

3003 O temper is the softest commonly supplied condition. It is generally appropriate for deep drawing, spinning, multi-stage pressing, and reflector designs with relatively high wall depth. Its ductility helps reduce the risk of cracking or wrinkling during forming. For complex shapes, we recommend evaluating an O temper sample using the customer's actual tooling and lubricant system.

3003 H14 Aluminum Discs

A 3003 H14 aluminum disc provides higher strength and rigidity than O temper material. It is often selected for shallow stamped reflectors, flat lighting components, covers, trim rings, and shapes requiring moderate deformation. H14 can support cleaner handling and structural stability, but it is not normally the first choice for severe deep drawing.

Other Tempers

H12, H16, and H18 tempers may be specified for applications that prioritize stiffness, spring resistance, or shallow-forming performance. Our technical team reviews the reflector profile, draw ratio, surface specification, and forming route before recommending a suitable temper.

Surface Requirements for LED Reflector Blanks

Surface quality is particularly important in lighting applications because reflectors are often visible, coated, or treated to enhance light distribution. As a factory, we control the production route to provide surfaces suitable for the customer's next process.

For standard painted or powder-coated reflectors, a clean mill finish with uniform appearance is often sufficient. For anodized reflector parts, the disc surface should be free from serious roller marks, oil contamination, scratches, and localized defects that may become more visible after treatment. For highly reflective lighting systems, the material may require a specialized bright, polished, or coated surface solution.

Where a high-reflectance finish is required, we recommend discussing the complete finishing route before placing a production order. The base aluminum circle is only one part of the final optical system. Anodizing thickness, vacuum metallization, white coating, mirror treatment, and protective layers all influence reflectance, color consistency, and service life.

For applications requiring a more decorative or reflective substrate, our Mirror Aluminum Circle options can be reviewed alongside standard 3003 alloy blanks.

Manufacturing Process in Our Factory

We manufacture aluminum circles through a controlled sequence designed to achieve consistent dimensions and dependable forming quality.

1. Coil and sheet selection: We select 3003 aluminum feedstock based on the required temper, thickness, surface level, and forming application.

2. Slitting and preparation: Material width is prepared to optimize blanking efficiency and maintain stable production conditions.

3. Circle blanking: Discs are produced by stamping or other suitable cutting methods according to diameter, thickness, and order quantity.

4. Edge treatment: We inspect and control edge quality to minimize burrs, sharp edges, and forming-related defects.

5. Flatness and appearance inspection: Each production batch is checked for visible surface issues, dimensional conformity, and deformation.

6. Protective packing: Finished 3003 aluminum circles are interleaved and packed to prevent abrasion, moisture exposure, and distortion during export transport.

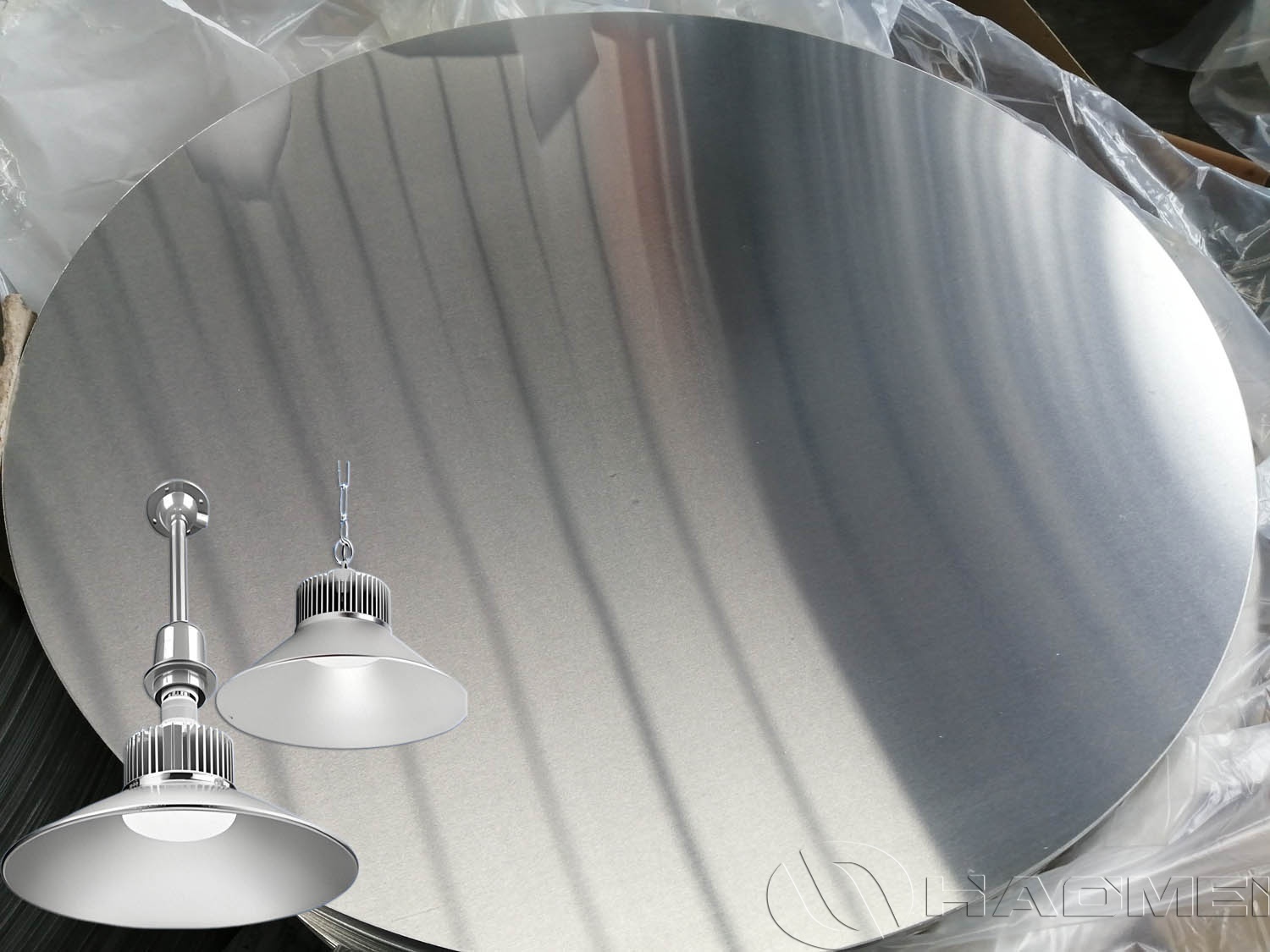

For customers producing lampshades, reflector covers, and decorative lighting shells, we also offer Aluminum Circles for Lampshades with specifications adapted to spinning and pressing operations.

Quality Control for Aluminum Discs for LED Reflectors

Quality consistency is necessary for high-volume LED lighting production. Variation in disc thickness, temper, surface condition, or diameter can affect tooling adjustment, reject rates, coating appearance, and finished reflector geometry.

Our quality control process focuses on the parameters most relevant to aluminum circle disc fabrication:

For export orders, we can apply batch labels showing alloy, temper, dimensions, quantity, production lot, and customer reference number. This provides practical traceability for receiving inspection and production planning.

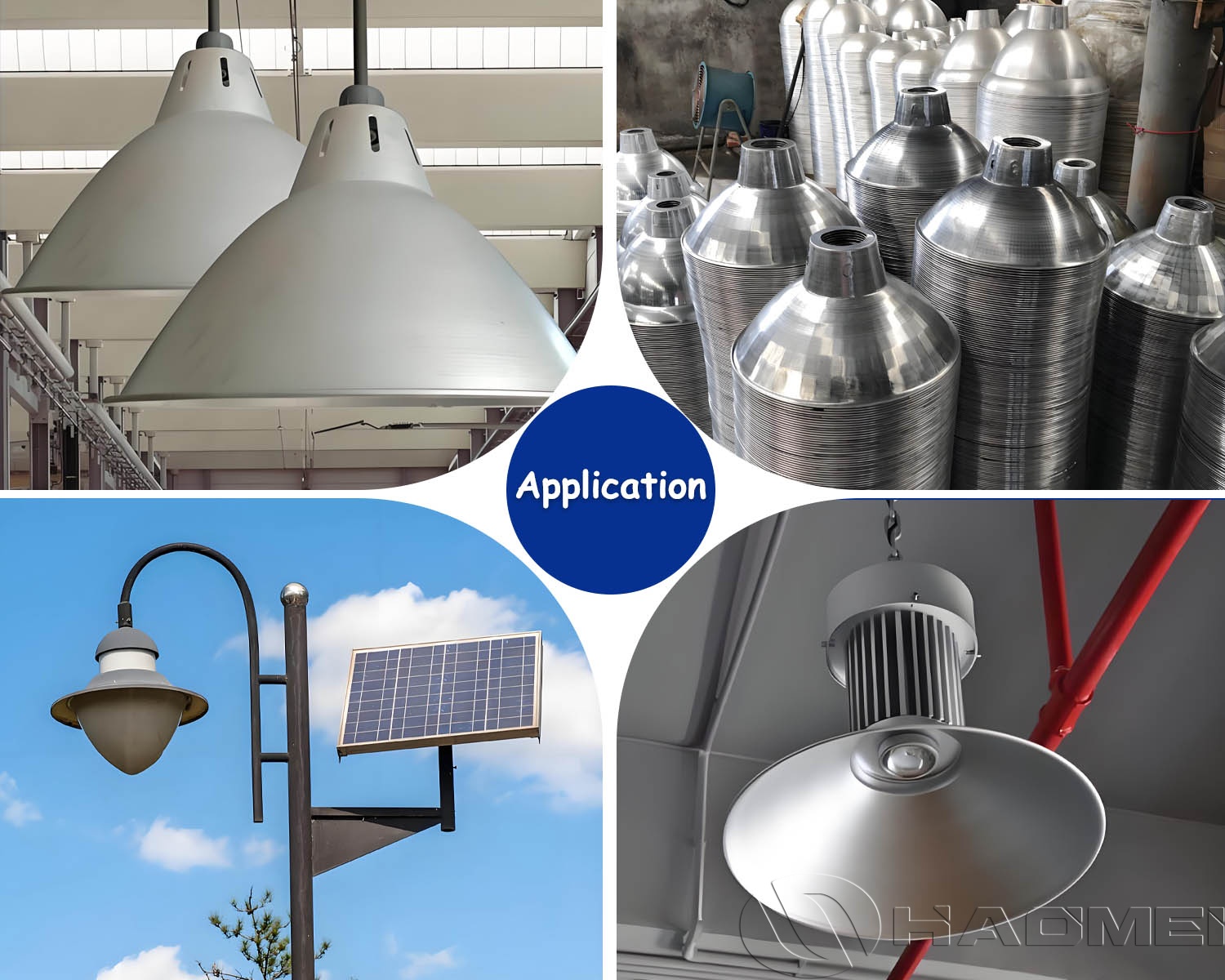

Application Areas

3003 alloy aluminum circles are used in a wide range of LED lighting products. Typical applications include:

• Downlight reflectors and trim components.

• Commercial and industrial high-bay reflector bodies.

• Track light and spotlight reflector blanks.

• Decorative pendant light and lampshade parts.

• Outdoor lighting reflector housings.

• LED bulb cups and lighting accessories.

• Heat-dissipating covers and stamped aluminum components.

The material choice should be based on the reflector's drawing depth, required finish, environmental exposure, and intended production volume. For example, a shallow coated reflector may use 3003 H14, while a deeper spun housing may require 3003 O temper. We can produce trial quantities for tooling validation before establishing a regular supply program.

Ordering Information for Custom Aluminum Circles

To quote 3003 aluminum circles accurately, we recommend providing the following information:

• Alloy and required temper.

• Diameter and thickness.

• Surface condition and finishing requirement.

• Forming method, such as stamping, spinning, or deep drawing.

• Tolerance requirements for thickness, diameter, and flatness.

• Required quantity per size and expected purchasing schedule.

• Packing requirements, pallet dimensions, and destination port.

• Whether material certificates, samples, or third-party inspection are required.

Our manufacturing team evaluates each request based on technical feasibility and stable mass production. This approach helps LED lighting manufacturers receive aluminum circle discs that are aligned with their tooling, surface finishing process, and finished product requirements.

Conclusion

3003 alloy aluminum circles provide a practical combination of formability, strength, corrosion resistance, and surface adaptability for LED reflector manufacturing. With suitable temper selection, controlled dimensions, and a surface specification matched to the finishing process, 3003 aluminum discs can support efficient production of durable and visually consistent lighting components.

As an aluminum circle manufacturer, we produce LED reflector blanks to customer drawings and production requirements, with attention to material consistency, edge quality, protective packing, and export documentation. Whether the requirement is for deep drawing aluminum discs, 3003 H14 aluminum disc blanks, or anodizing-quality reflector circles, we can develop the appropriate supply specification for your lighting project.
