As a manufacturer of aluminum circles for cookware production, we supply 1050 and 1060 pre-coated aluminum circles designed for frying pan forming, coating, and finishing operations. These aluminum circle blanks are produced from high-purity 1000 series aluminum and processed to provide reliable deep drawing performance, controlled surface quality, and consistent dimensions.

Pre-coated aluminum circles are widely used by frying pan manufacturers that require a prepared metal substrate before non-stick coating, ceramic coating, painting, or other surface treatment processes. Compared with untreated blanks, a properly prepared and pre-coated aluminum disc can help reduce surface preparation time, improve coating consistency, and support stable production efficiency.

Our 1050 and 1060 aluminum circles for frying pans are available in customized diameters, thicknesses, tempers, and coating specifications. We manufacture the discs according to the forming method, pan geometry, coating system, and quality requirements of each customer.

Why 1050 and 1060 Aluminum Are Used for Frying Pan Circles

1050 and 1060 are commercially pure aluminum grades from the 1000 series. Their high aluminum content provides good thermal conductivity, corrosion resistance, surface treatment capability, and ductility. These characteristics make them suitable materials for cookware bodies, particularly pressed and deep-drawn frying pans.

For frying pan production, the aluminum circle must withstand blanking, drawing, spinning, trimming, bottom pressing, and handle attachment processes without excessive cracking, wrinkling, or uneven deformation. The material must also provide a stable surface for subsequent non-stick or decorative coating applications.

1050 aluminum contains at least 99.5 percent aluminum, while 1060 aluminum contains at least 99.6 percent aluminum. In practical cookware manufacturing, both grades offer excellent workability. The final selection usually depends on the customer's forming depth, required mechanical properties, surface quality specification, and purchasing standard.

We manufacture 1050 Aluminum Circle products for customers requiring dependable drawability and a uniform substrate for coated cookware. For applications that require similarly high purity with customized dimensional control, our 1060 Aluminium Circle range is also available in multiple tempers and surface conditions.

What Is a Pre-Coated Aluminum Circle?

A pre-coated aluminum circle is an aluminum disc that has received a controlled surface preparation and coating treatment before being delivered to the cookware factory. The specific coating system can be selected according to the customer's downstream process. It may function as a primer layer, protective layer, decorative base, or coating-ready surface.

The purpose of pre-coating is not simply to add color or surface protection. For frying pan production, the coating layer must be compatible with the intended forming sequence and final cookware coating process. A coating that has insufficient flexibility may crack during deep drawing. A coating with weak adhesion may separate during baking or service. Therefore, aluminum substrate quality and coating system control must be considered together.

Our production process evaluates the relationship between alloy, temper, disc thickness, lubricity, surface roughness, pre-treatment, and coating weight. This helps ensure that the supplied pre-coated aluminum circles are suitable for the customer's frying pan manufacturing line.

Performance Advantages

Superior Thermal Conductivity: As pure aluminum (1050 with ≥99.5% purity; 1060 with ≥99.6% purity), the material offers excellent heat conduction. It ensures rapid and uniform heating of the frying pan, effectively preventing localized overheating and food scorching, thereby enhancing cooking efficiency and saving energy.

Excellent Formability: Both materials possess high plasticity and outstanding ductility. For instance, 1060 aluminum boasts an elongation rate of up to 30%, making it ideal for the complex forming processes required in pan manufacturing—such as deep drawing, stamping, and stretching—without cracking during production.

Outstanding Corrosion Resistance: Aluminum naturally forms a protective oxide layer, providing good corrosion resistance. Pre-coating further reinforces this protection, effectively resisting corrosion from acidic, alkaline, and salty foods common in kitchen environments.

Lightweight and Durable: Aluminum's low density makes the frying pan lightweight and easy to handle. The surface pre-coating enhances durability, resists stains, and improves scratch resistance, ensuring the pan withstands the wear and tear of daily use.

Surface Advantages: The high-quality surface finish facilitates strong coating adhesion;

Safe and Eco-friendly: Complies with food-contact safety standards and is non-toxic; furthermore, aluminum is a 100% recyclable, environmentally friendly material.

Technical Parameters of 1050 1060 Pre-Coated Aluminum Circles

The following parameters represent our common manufacturing range. Final specifications are confirmed according to frying pan design, drawing ratio, coating system, and customer drawings.

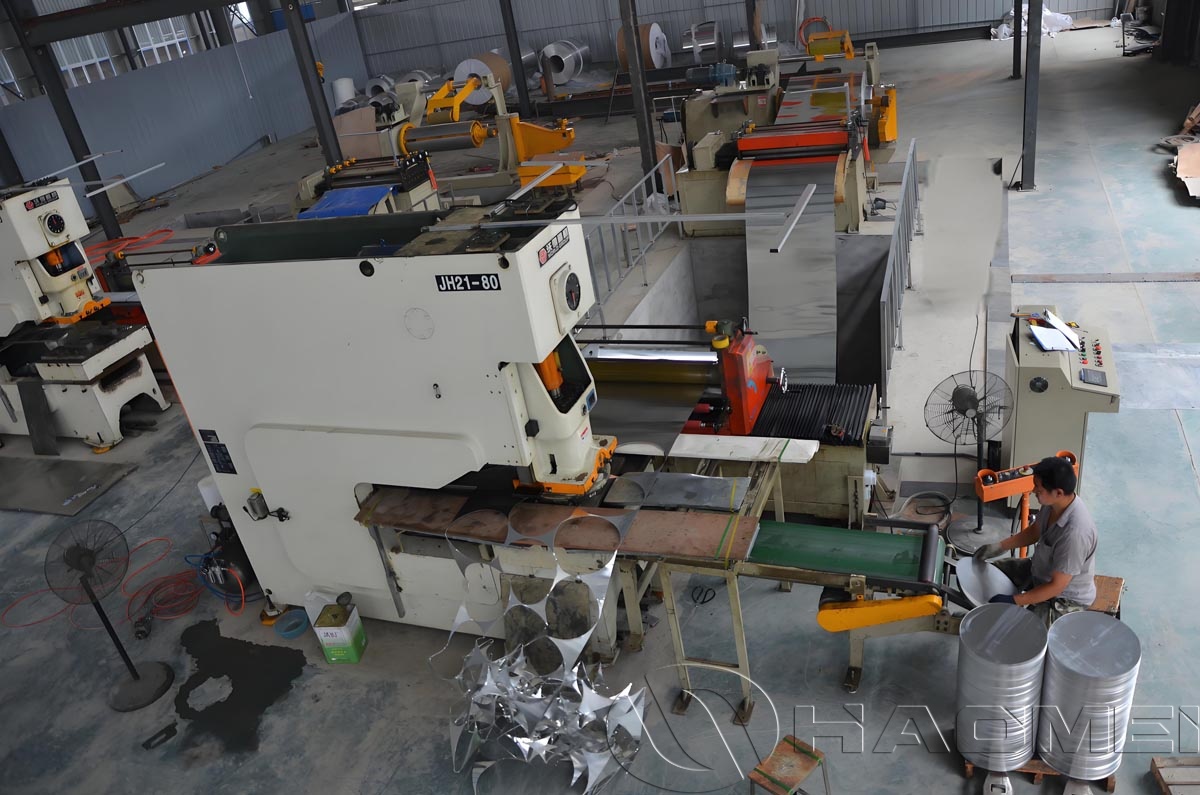

Manufacturing Process for Pre-Coated Aluminum Discs

We control the production route from aluminum coil selection to final packaging. This manufacturing approach allows us to coordinate the properties of the aluminum substrate and the requirements of the coating process.

1. Raw Material Inspection

Production begins with qualified 1050 or 1060 aluminum coil. We inspect alloy identification, thickness, surface condition, coil shape, and mechanical properties before processing. For frying pan circles, material consistency is important because variation in thickness or hardness can affect drawing depth and wall uniformity.

2. Annealing and Temper Control

For deep-drawn frying pans, O temper aluminum circles are commonly required. Annealing reduces material hardness and improves elongation, allowing the disc to form into a pan body with a lower risk of edge cracking. For shallower products or specific production methods, H-series tempers may be used.

We control the annealing process to achieve the requested balance between formability and strength. Temper selection should always be based on the final cookware structure rather than only on the initial disc specification.

3. Circle Blanking

The aluminum coil is blanked into circles using appropriate equipment and tooling. We maintain controlled disc diameter, roundness, and edge condition. A clean edge is essential for smooth material flow during drawing and for reducing defects during later trimming and rolling operations.

4. Surface Cleaning and Pre-Treatment

Before coating, the aluminum circles are cleaned to remove residual rolling oil, dust, and other contaminants. The surface is then prepared according to the specified coating system. Proper pre-treatment improves wetting and adhesion between the aluminum substrate and the coating layer.

For non-stick cookware, this stage is especially important. The final coating performance depends not only on the non-stick material itself, but also on the cleanliness and stability of the aluminum surface beneath it.

5. Coating Application and Curing

The coating is applied under controlled conditions to achieve the required film uniformity and coverage. Curing parameters are adjusted according to the coating type and required downstream forming performance. We verify coating appearance, adhesion, and other agreed inspection items before packing.

Key Quality Requirements for Frying Pan Aluminum Circles

Frying pan manufacturers should evaluate more than alloy and diameter when sourcing pre-coated aluminum circles. The following points directly affect production stability and finished cookware quality.

Formability

The blank must match the pan's drawing depth, wall angle, bottom geometry, and forming sequence. Deep frying pans generally require soft O temper aluminum with stable elongation. If the disc is too hard, cracking may occur at the rim or sidewall during pressing.

Surface Uniformity

The surface should be free from defects that can remain visible after coating or affect adhesion. We inspect for scratches, oil stains, roller marks, pits, inclusions, and color inconsistency in accordance with the agreed quality standard.

Coating Adhesion

A pre-coated aluminum disc must retain coating integrity through handling, forming, curing, and final use. We can coordinate coating properties with the customer's coating supplier or process requirements to reduce the risk of peeling, flaking, or cracking.

Dimensional Consistency

Consistent diameter and thickness support stable press operation, predictable material flow, and lower scrap rates. This is particularly important for high-volume frying pan manufacturing lines using automated feeding and stamping equipment.

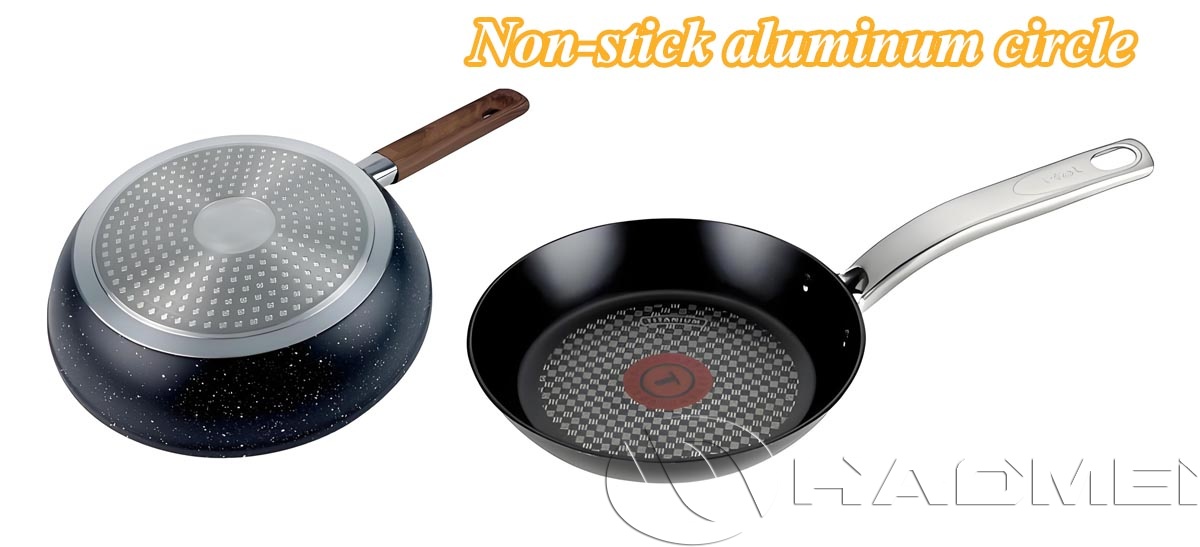

Typical Applications

Our 1050 and 1060 pre-coated aluminum circles are primarily used for the production of cookware, including:

• Non-stick frying pans

• Ceramic-coated frying pans

• Painted aluminum pans

• Omelet pans

• Saute pans

• Shallow cooking pans

• Woks and round cookware bodies

• Cookware components requiring pre-finished aluminum blanks

Packaging and Export Delivery

As an aluminum circle manufacturer serving international cookware producers, we use export-oriented packaging to protect pre-coated surfaces during storage and transport. Circles can be separated with interleaf paper or protective film where required. The stacks are secured with moisture-resistant wrapping, protective corner materials, and wooden pallets suitable for container loading.

For coated discs, packaging design is particularly important because friction, moisture, and movement during transport may damage the surface. We confirm packing details based on disc diameter, coating sensitivity, stack height, destination, and container shipping conditions.

How We Support Custom Frying Pan Projects

Each frying pan program has different requirements. A small omelet pan, a deep saute pan, and a large commercial frying pan may require different thicknesses, tempers, coating systems, and disc diameters. We work from technical drawings, sample pans, forming data, and coating specifications to recommend a suitable aluminum circle solution.

Before volume production, we can confirm key details including alloy, temper, thickness tolerance, blank diameter, coating side, film thickness, surface protection, and packaging method. This technical alignment helps ensure that the 1050 or 1060 pre-coated aluminum circles perform consistently in the customer's production process.

Conclusion

1050 and 1060 pre-coated aluminum circles provide a practical and reliable material basis for frying pan manufacturing. Their high purity, thermal conductivity, formability, and coating compatibility make them suitable for a broad range of non-stick, ceramic-coated, and painted cookware products.

By controlling aluminum coil quality, annealing, blanking, surface preparation, coating, inspection, and packaging in our factory, we supply aluminum circles for frying pans that are aligned with actual manufacturing requirements. Customers can specify their required diameter, thickness, temper, coating system, and packaging configuration for customized production.
