As a manufacturer of aluminum circle products, we produce large size 3105 aluminum discs for traffic signs that require reliable formability, flatness, corrosion resistance, and surface consistency. These discs are used as substrates for regulatory signs, warning signs, directional signs, temporary traffic signage, and reflective road sign panels.

Traffic sign production requires more than a basic aluminum blank. The material must perform consistently during cutting, pressing, deburring, surface preparation, reflective sheeting lamination, and outdoor service. Our 3105 aluminum circles are manufactured from controlled 3000 series aluminum coil and processed to meet the dimensional and surface requirements of sign fabricators and engineering buyers.

Why 3105 Aluminum Is Suitable for Traffic Sign Blanks

3105 is an aluminum-manganese alloy with a small magnesium addition. It offers higher strength than 1100 aluminum while retaining good workability and corrosion resistance. For traffic sign applications, this balance is important because sign blanks must remain stable during fabrication and withstand exposure to rain, humidity, salt, temperature changes, and urban pollutants.

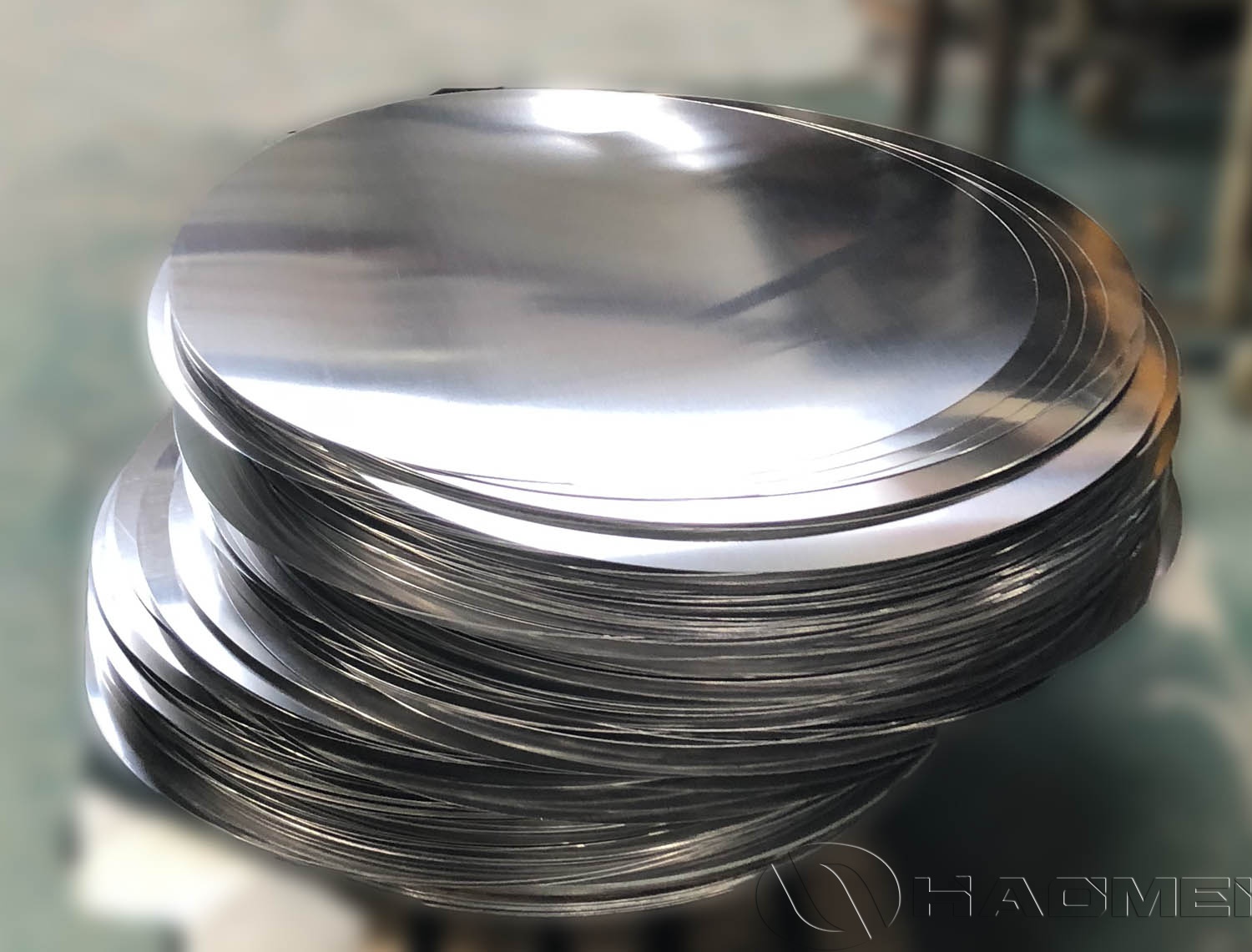

Large size 3105 aluminum discs are especially suitable for circular traffic signs, including speed limit signs, prohibition signs, mandatory instruction signs, priority signs, and warning signs. The alloy provides a stable base for reflective films, paints, and screen-printing systems when the surface condition is selected correctly.

Key material advantages include:

• Good corrosion resistance for outdoor road environments.

• Higher mechanical strength than commercially pure aluminum grades.

• Consistent flatness for reflective sheeting and graphic application.

• Good punching, blanking, trimming, and light forming performance.

• Low weight compared with steel sign substrates.

• Recyclable material suitable for sustainable transport infrastructure projects.

Our production program also includes 3000 Series Aluminum circle products for customers who require alternative grades, thickness ranges, or processing conditions for sign and industrial applications.

Technical Parameters for Large Size 3105 Aluminum Discs

The following table shows the typical specification range for our 3105 aluminum discs for traffic signs. Final values can be adjusted according to customer drawings, sign standards, equipment capability, and required coating process.

Material Composition and Mechanical Performance

The chemical composition of 3105 aluminum supports its performance in outdoor fabricated products. Manganese contributes to strength and corrosion resistance, while magnesium helps improve mechanical properties without making the alloy difficult to process.

Mechanical properties vary by thickness and temper. For traffic signs, we commonly recommend H14 or H24 temper when a combination of rigidity and fabrication performance is required. For applications involving additional forming or special edge shaping, O temper can be considered.

Manufacturing Process for Large Diameter Aluminum Discs

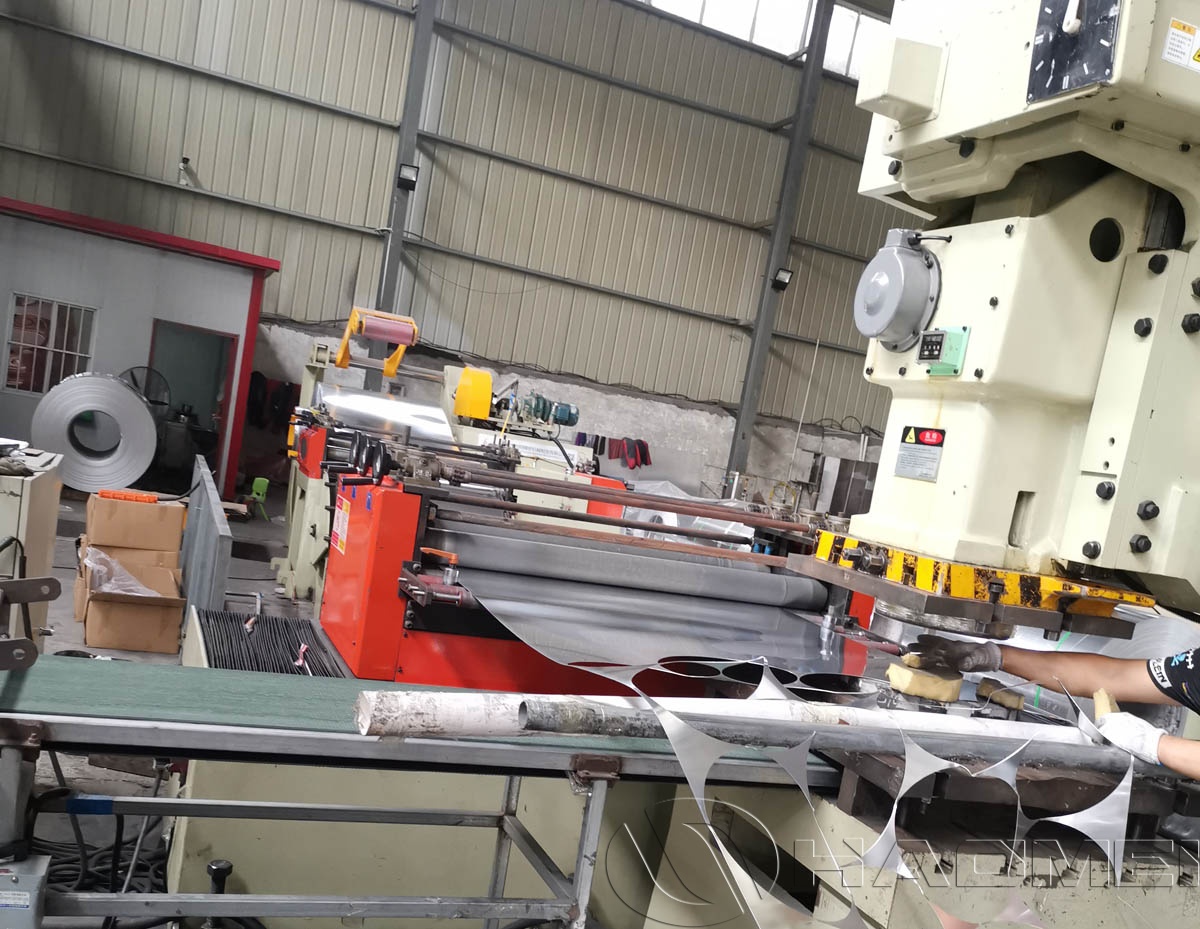

Our factory controls each production stage to ensure that large size aluminum discs maintain consistent dimensions and usable surfaces. The process begins with qualified 3105 aluminum coil, followed by slitting when necessary, blanking or stamping, deburring, inspection, protective interleaving, and export packaging.

For large diameter traffic sign aluminum blanks, tooling accuracy and coil condition are critical. Improper blanking can result in uneven edges, excessive burrs, diameter variation, or distortion. We use suitable production methods based on disc diameter, thickness, order quantity, and tolerance requirements.

Our manufacturing controls include:

1. Coil inspection: We verify alloy, temper, thickness, width, surface condition, and coil edge quality before production.

2. Precision blanking: Disc diameter is controlled through properly maintained tooling and production settings.

3. Edge finishing: Burr control helps protect operators and supports clean downstream processing.

4. Flatness inspection: Large discs are checked to reduce the risk of uneven reflective sheeting application.

5. Surface inspection: We inspect for scratches, oil marks, roll defects, dents, stains, and other conditions that may affect sign appearance.

6. Packing verification: Paper separation and pallet protection reduce abrasion and moisture risk during shipment.

Surface Requirements for Reflective Traffic Signs

Traffic sign manufacturers often apply retroreflective sheeting to aluminum substrates. Therefore, the surface of a 3105 aluminum disc must be clean, stable, and compatible with the customer's pre-treatment or lamination procedure.

For mill-finish discs, we maintain a controlled surface suitable for customers who perform their own cleaning and conversion treatment. For projects requiring a more specific surface condition, we can discuss degreasing, protective film, and other agreed delivery conditions.

The correct surface specification depends on the chosen reflective film, adhesive system, printing process, and local traffic sign standard. Before volume production, we recommend a sample evaluation using the customer's actual sheeting and fabrication process. This confirms adhesion, visual uniformity, and performance after forming or mounting.

Dimensional Control for Large Traffic Sign Circles

Large diameter discs require particular attention because minor deviations can become more visible on circular signs. A sign blank that is out of round or has irregular edges may create alignment problems during film application, trimming, frame assembly, or bracket installation.

We inspect diameter, thickness, edge quality, and visible surface condition according to the agreed order specification. Where required, we can provide customized diameter tolerances and inspection records for project orders. Our 3105 Aluminum Circle production is available for standard circular blanks as well as customer-specific sizes for public infrastructure and sign manufacturing.

For larger signs, buyers should define the following requirements clearly during inquiry:

• Disc diameter and permitted tolerance.

• Thickness and temper.

• Maximum acceptable burr height.

• Surface condition and allowable cosmetic defects.

• Flatness requirement.

• Reflective sheeting or coating process.

• Quantity per pallet and packaging method.

• Destination port and shipping conditions.

Quality Inspection at Our Factory

Quality control is integrated into our manufacturing process rather than limited to final packing inspection. We conduct checks on incoming coil material, in-process discs, and finished pallets. This approach helps identify deviations early and supports stable batch-to-batch quality.

Typical inspection items include alloy verification documents, thickness measurement, diameter measurement, temper confirmation, visual surface examination, edge condition checks, and packaging inspection. For project-based orders, we can align inspection points with agreed technical documentation.

Our team understands that road sign aluminum substrates are often supplied into projects with strict traceability and delivery schedules. We therefore maintain clear identification for material batches and coordinate packing details with the buyer's unloading and production requirements.

Packaging and Export Supply

Large size 3105 aluminum discs are separated with paper or protective materials to minimize friction during transportation. The discs are then secured on strong wooden pallets suitable for export handling. Outer wrapping is applied to help protect against dust and moisture in sea freight conditions.

Because large discs have a wide surface area, packaging must prevent movement, edge impact, and surface abrasion. We calculate pallet loading based on diameter, thickness, weight, and container utilization while maintaining safe handling conditions at the destination.

Request a 3105 Aluminum Disc Quotation

As a direct manufacturer, we supply large size 3105 aluminum discs for traffic signs according to customer specifications. To prepare an accurate quotation, please provide the required diameter, thickness, temper, surface condition, quantity, packaging preference, and destination port.

Our technical team can review the application and recommend a suitable 3105 aluminum circle specification for circular traffic sign blanks, reflective sign production, and related outdoor aluminum panel requirements.
